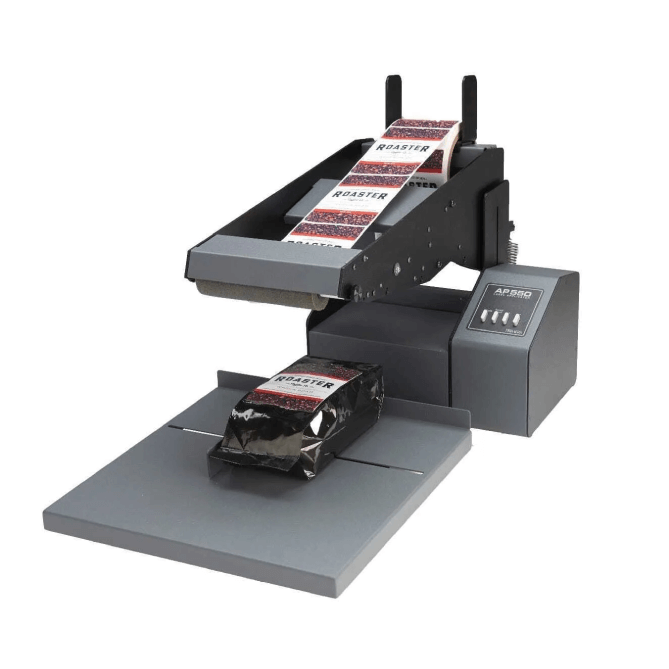

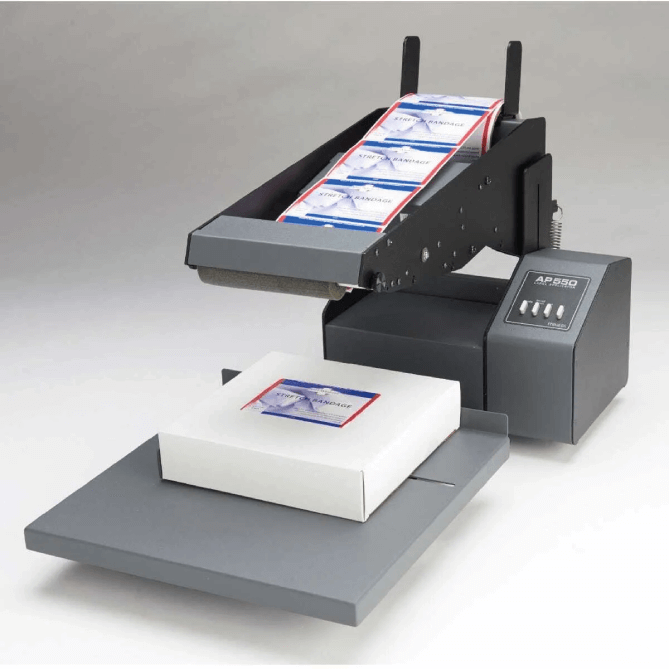

AP550 Flat Surface Label Applicator

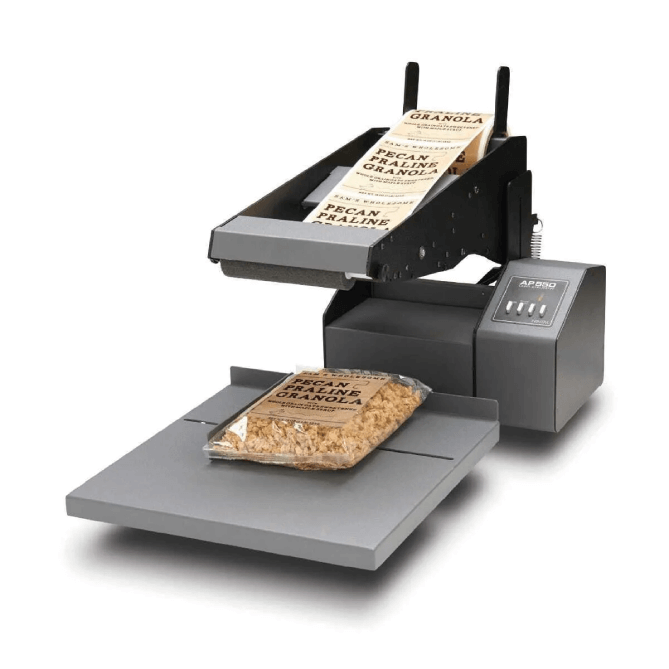

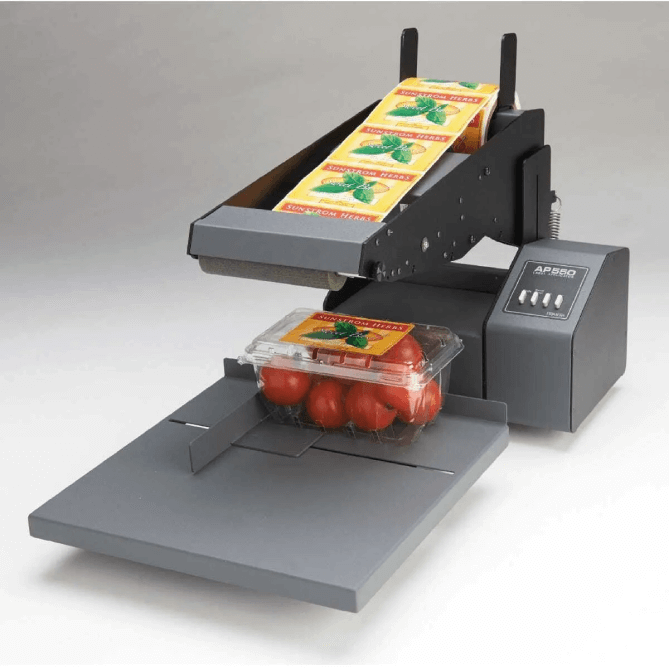

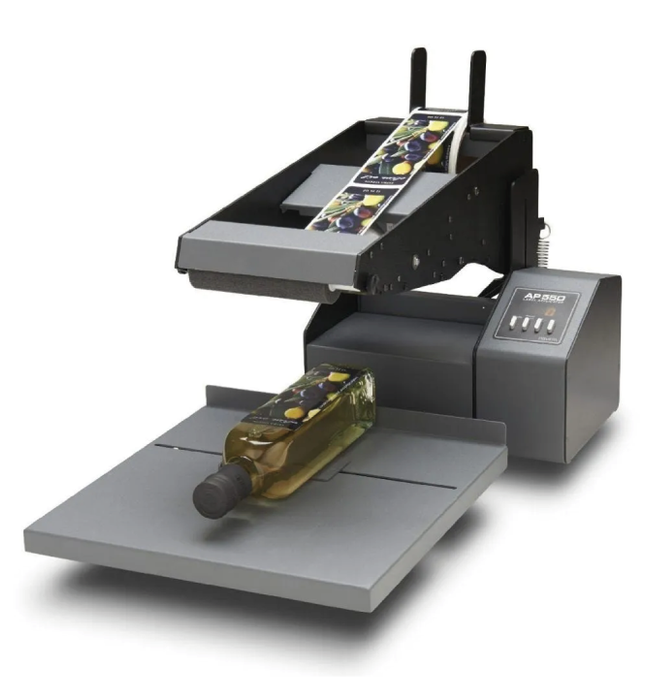

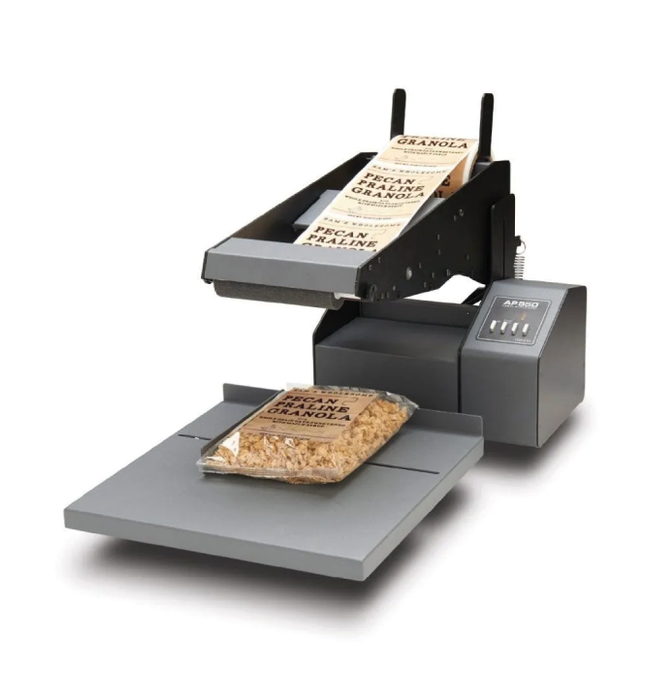

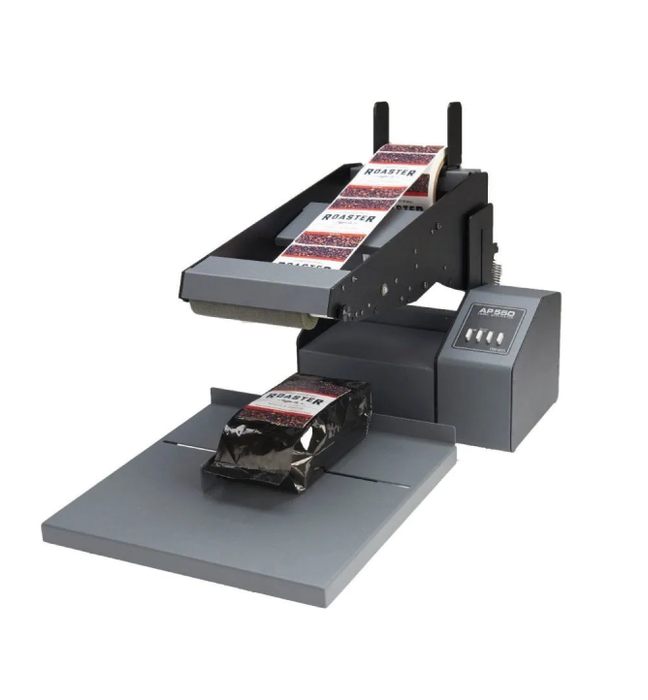

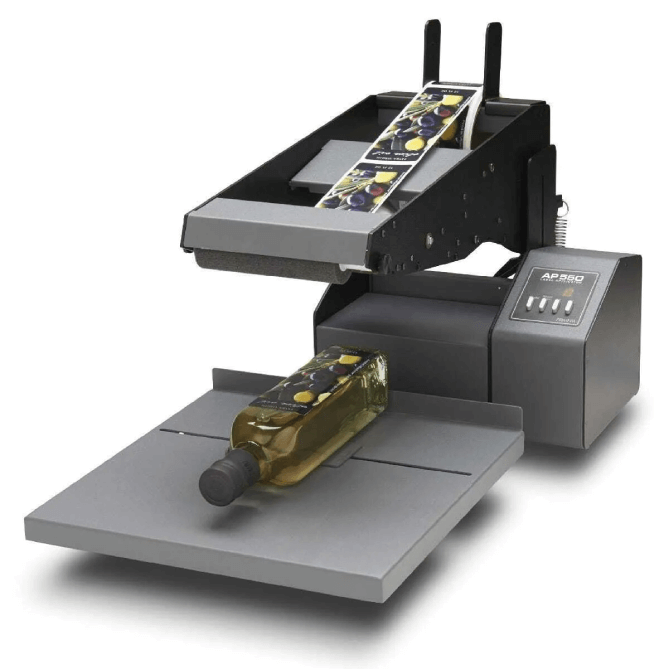

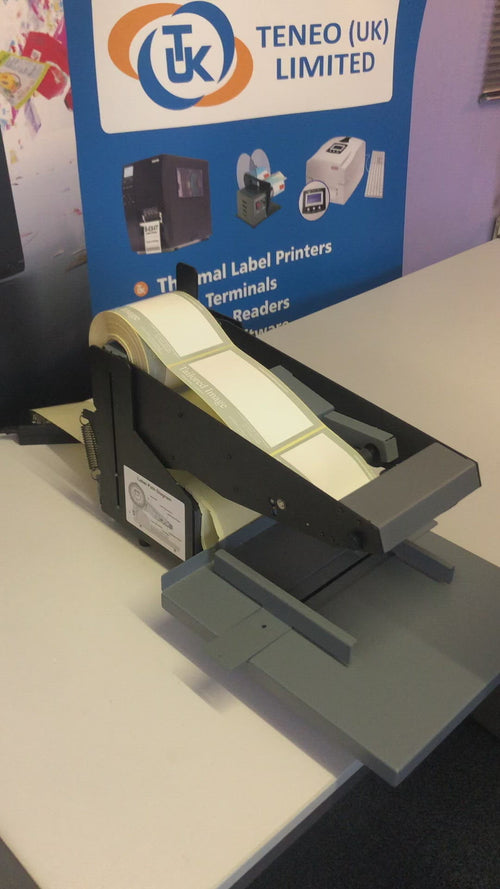

Primera's AP550 is a semi-automatic label applicator that makes it fast and easy to precisely apply product and identification labels onto a wide range of flat surfaces such as rectangular or tapered bottles, boxes, packages, bags, pouches, lids, tins, and much more. Labels are applied straight without wrinkles or folds in exactly the location desired. This gives finished products a highly professional look and significantly increases the number of containers that can be labelled per hour versus manually applying labels.

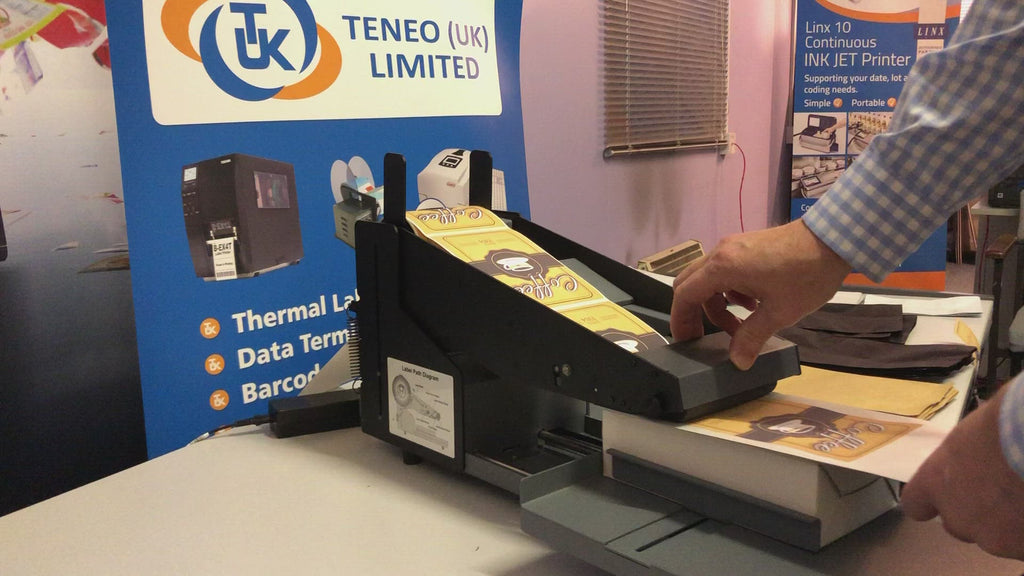

Operation is simple: place the container in the mechanism and pull the arm to the container and the label is automatically applied. Variable spacing, memory for up to nine jobs, and a counter with built-in LED display are all included. No air-pressure supply is required which can be a significant advantage over other label applicators that require expensive, noisy and maintenance-prone air compressors.
The AP550 label applicator is ideal for use with the Epson ColorWorks C3500, C6000 series and C7500 series colour label printers, but they are also suitable for use with any die-cut label printer including thermal transfer printers, colour inkjet label printers, laser label printers and flexo (press) printed labels.
|Container Platform Dimension||12" x 12.2" (305mm x 310mm)|
|Container Height||0.002" to 8" (0.05mm to 203mm)|
|Container Shape||Flat, tapered front-to-back, flat front with rounded edges, cube, cuboid, cylinder on end, prism on end|
|Supply roll diameter||Up to 8" (203mm)|
|Media liner width||0.875" to 4.125" (22.2mm to 104.8mm)|
|Supply roll core size||2" to 3" inner diameter (51.8mm to 76.2mm)|
|Label Placement||Leading edge up to 8" (203mm) from trailing container edge|
|Label Media Thickness||Minimum 7 mil, liner at least 2 mil|
|Label Width Range||0.75" to 4" (19mm to 101.6mm)|
|Label Length Range||0.75" to 6" (19mm to 152.4mm)|
|Dimensions||305mm x 541mm x 256-391mm|
|Warranty||12 month return-to-base parts and labour|
