Axicon 15500 - Linear and 2D Barcode Verifier

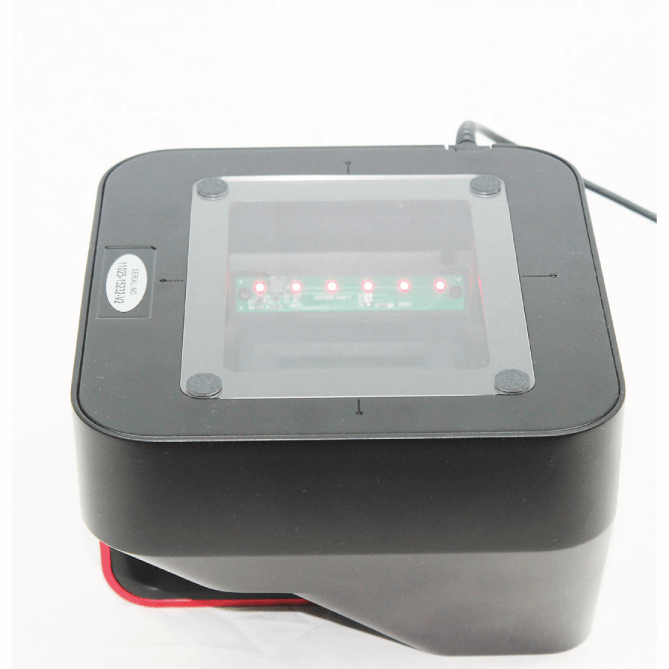

The Axicon 15000 series verifiers have been designed to read both two-dimensional and linear barcodes. The system uses a special array of LEDs and a CCD-based sensor to capture each barcode image before it is analysed. It is able to verify multiple barcodes in the same field of view, whether they are 2D or linear codes, and the user sees the results for each barcode by selecting the relevant barcode on the screen.
QR Code, GS1 QR Code, Data Matrix and GS1 DataMatrix symbols can all be verified, as can any EAN/UPC, ITF-14, GS1-128, Code 128, or Code 39 symbol

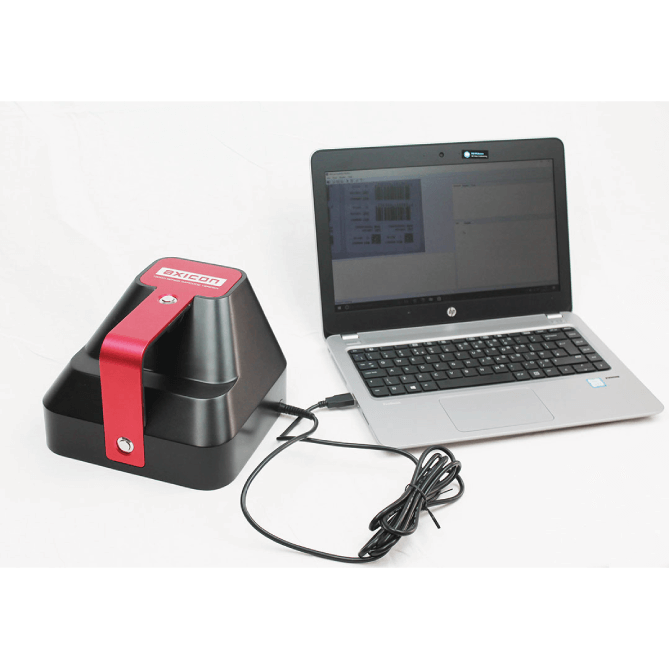

The Axicon 15000 series verifiers are powered solely from the USB2 port of a computer, so it is portable when used with a laptop computer.
- 95mm x 70mm field of view
- Three different operating positions
- ISO/IEC compliant verification
- USB powered
- Data content checker
