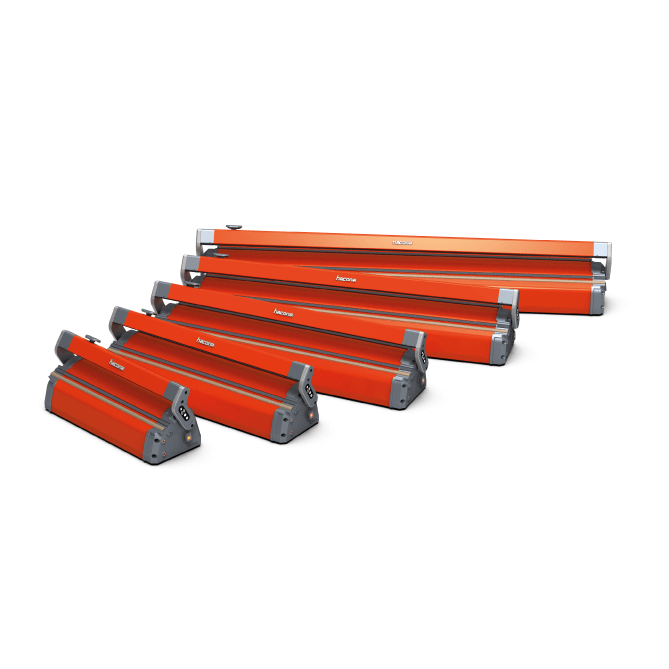

The E-Type series offers a digitally-controlled professional sealer with motorised sealing bar and Adaptive Sealing Cycle Control (ASCC).
Energy-efficient, high speed heat sealing combined with professional-level build quality and reliability.
- Motorised Sealing Bar with Integral Slitter
- The sealing head closes electrically and automatically opens at the end of the sealing and cooling cycle to ensure optimum seal quality. The integral slitter neatly separates the sealed film and creates a new leading edge on the film roll.
- Digital Temperature & Time Control
- Precise adjustment gives more flexible regulation of seal quality and minimises energy consumption.
- Adaptive Sealing Cycle Control (ASCC)
- An innovative feature that automatically adjusts sealing and cooling times to suit the working cycle speed. This prevents overheating of sealing wires during extended, high-frequency use.
- Standard IP33 classification (optional IP44)
- Pinch protection on sealing bar movement
- Sealing settings can be locked to prevent tampering
- Concealed film slitter blade minimises risk of injury
|Max. sealing length (mm)||400||600|
|Seal width (mm)||5||5|
|Max. sealable film thickness (mu)||500||500|
|Max. film width (mm)||400||600|
|Max. slitting width (mm)||400||600|
|Power supply||230V 50/60Hz||230V 50/60Hz|
|Max. standby power usage (W)||20||20|
|Max. sealing power usage (W)||650||900|
|Sealer dimensions (L x W x H)||600 x 215 x 255||800 x 215 x 255|
