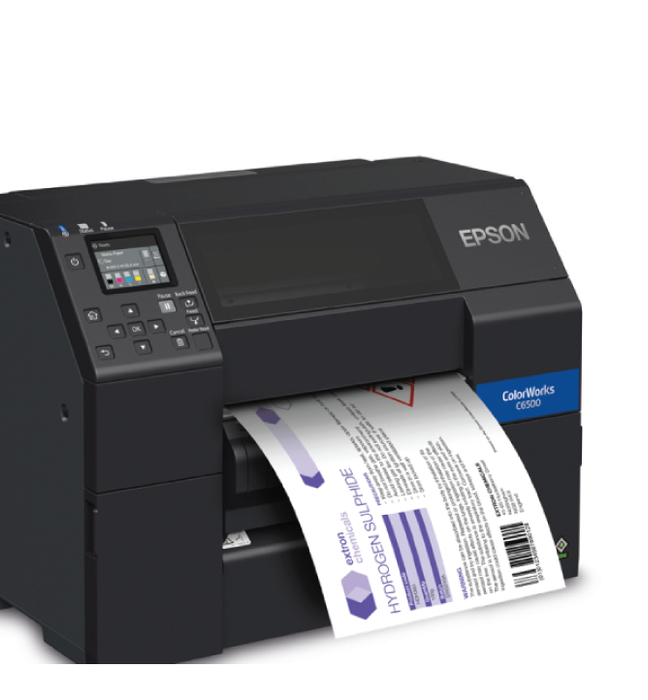

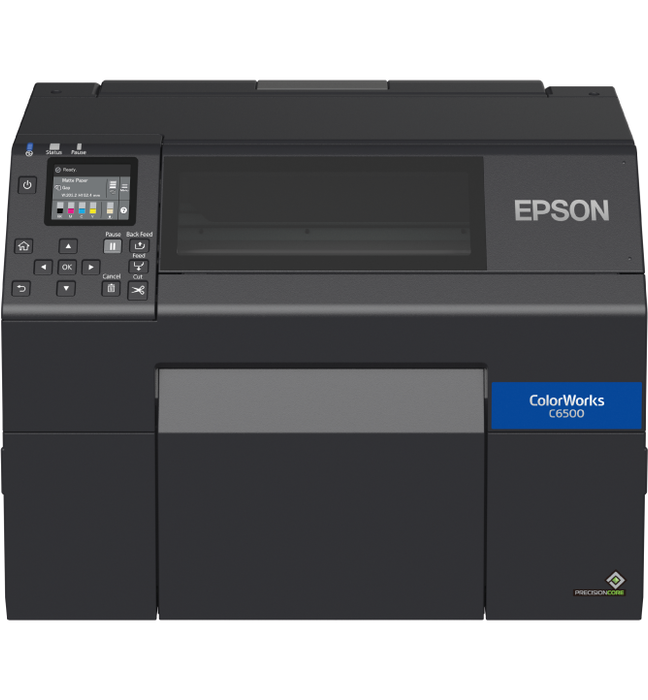

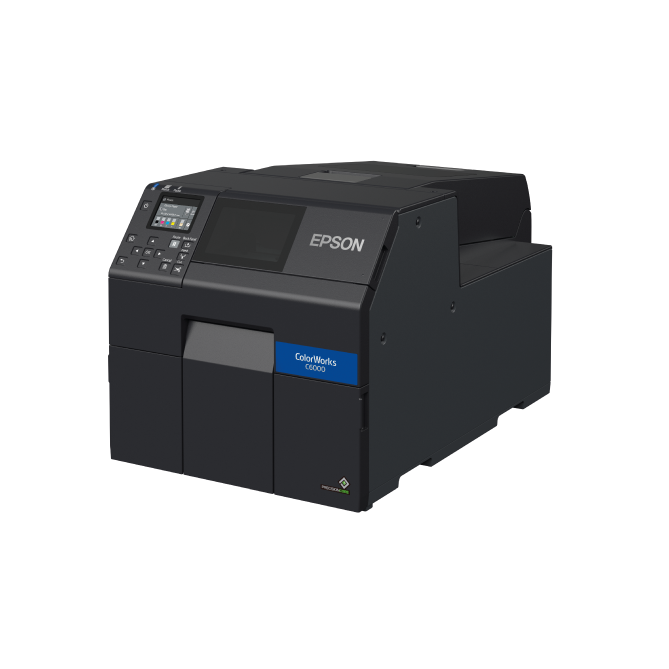

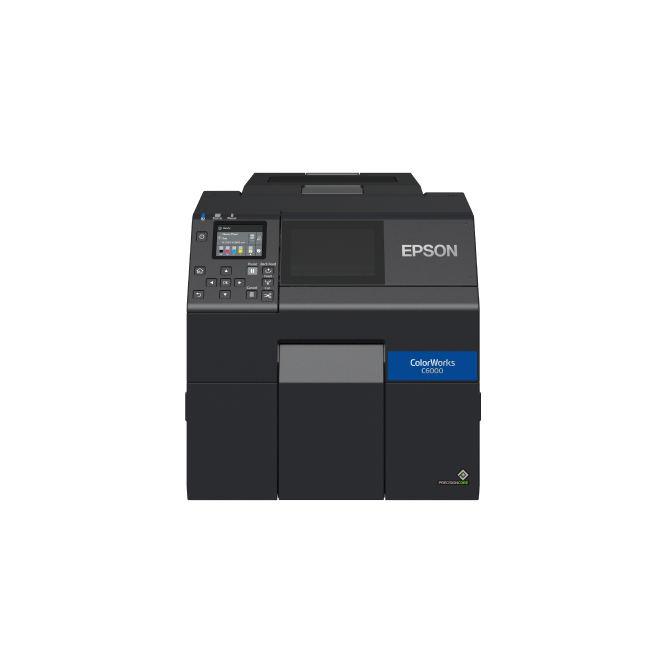

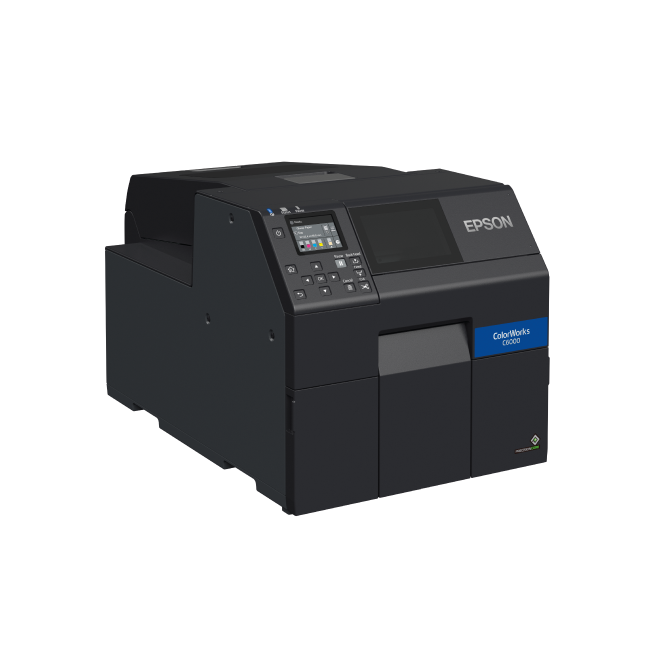

Epson ColorWorks C6000 Series
Developed as a result of direct feedback from customers, the ColorWorks C6000 series offers speed, control, efficiency and flexibility, allowing you to produce high quality, custom labels time after time.
The C6000 series comes in either 4" or 8" print-widths, and each size model is also available with an optional, built-in peeler to optimise workflows.
Media flexibility
Glossy, matte and textured substrate support. Sizes from 25mm - 208mm. Unique movable sensor allows printing on any shape, without a second die cut.
Remote configuration and maintenance
Intelligent web interface for management of printer fleets. Tool to push changes to a fleet of printers.
Easy operation
Load media from two different sides. Remove paper jams easily with the front and rear hoods. One-step variable data processing. Large (2.7”) intuitive LCD display.
High-quality printing
1200x1200dpi resolution. Match solid colours to ICC profiles and spot brand colours.
Durable Inks
Achieve smooth gradations and fine lines with variable size droplet technology. Ultrachrome DL pigment inks for durable labels. BS 5609 certified when printing onto PE matt media.
Service support
Complete peace of mind. No caveats – everything is covered under warranty, even the printhead. CoverPlus is available as an optional extra to provide cover for the lifetime of the printer.

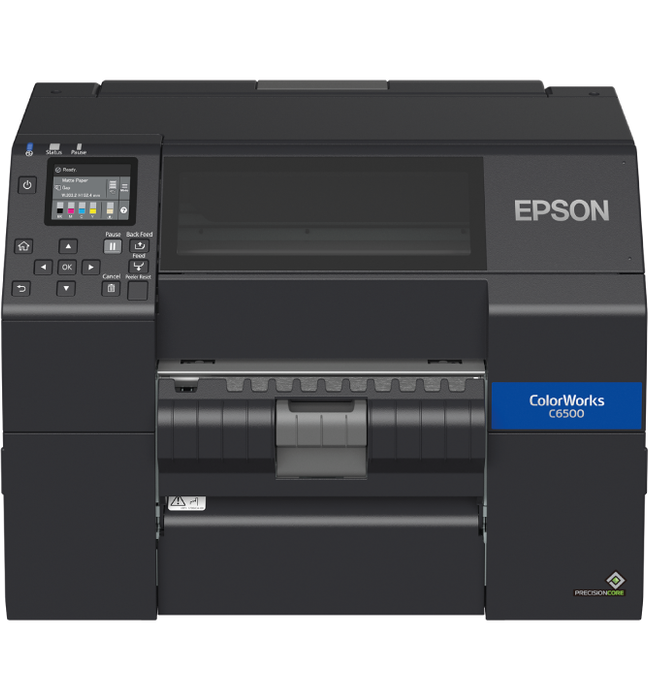

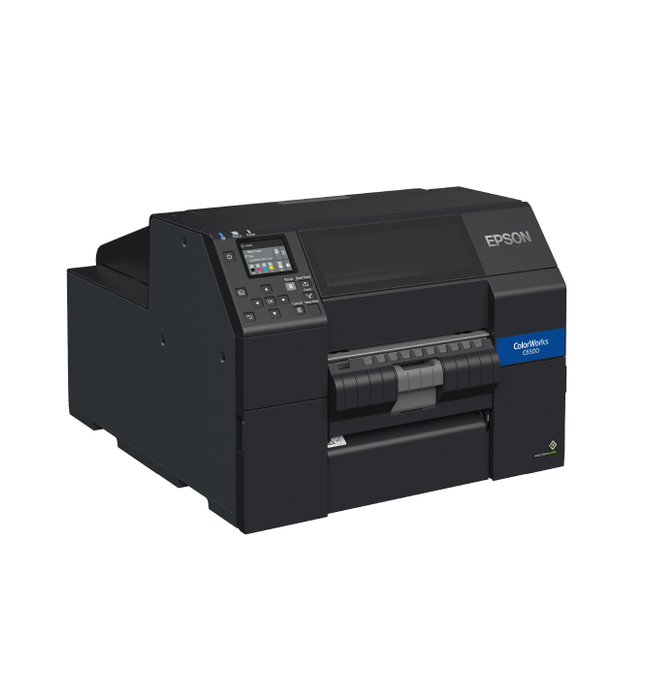

Exclusive built-in peeler
One-by-one functionality, unique amongst inkjet printers. Time-saving feature that automatically removes label backing paper. Simple integration with Print & Apply applications.
| Model | CW-C6000AE | CW-C6000PE | CW-C6500AE | CW-6500PE |
| Printhead |
μTFP4 |
μTFP4 | μTFP4 | μTFP4 |
| Resolution (dpi) | 1200 x 1200dpi | 1200 x 1200dpi | 1200 x 1200dpi | 1200 x 1200dpi |
| Ink Colours | 4 Colours | 4 Colours | 4 Colours | 4 Colours |
| Ink Capacity | 80 ml | 80 ml | 80 ml | 80 ml |
| Supported Media | Matte label, Matte film label, Glossy Label, Glossy film label, High Gloss Label | Matte label, Matte film label, Glossy Label, Glossy film label, High Gloss Label | Matte label, Matte film label, Glossy Label, Glossy film label, High Gloss Label | Matte label, Matte film label, Glossy Label, Glossy film label, High Gloss Label |
| IO Port | Standard | Standard | Standard | Standard |
| Printing Direction | Bi-Direction or Unidirectional | Bi-Direction or Unidirectional | Bi-Direction or Unidirectional | Bi-Direction or Unidirectional |
| Label Length | 609.6mm | 609.6mm | 609.6mm | 609.6mm |
| Size (W x D x H) | 340 x 565 x 326 | 340 x 565 x 326 | 340 x 565 x 326 | 340 x 565 x 326 |
| Print Speed (in full-width) |
119.5 mm/s (Max Speed 300 x 600dpi) 76.6 mm/s (Speed 600 x 600dpi) 51.2 mm/s (Normal 600 x 600dpi) 18.8 mm/s (Quality 600 x 1200dpi) 9 mm/s (Max Quality 1200 x 1200dpi) |
119.5 mm/s (Max Speed 300 x 600dpi) 76.6 mm/s (Speed 600 x 600dpi) 51.2 mm/s (Normal 600 x 600dpi) 18.8 mm/s (Quality 600 x 1200dpi) 9 mm/s (Max Quality 1200 x 1200dpi) |
85.1 mm/s (Max Speed 300 x 600dpi) 50.4 mm/s (Speed 600 x 600dpi) 35.9 mm/s (Normal 600 x 1200dpi) 13.2 mm/s (Quality 600 x 1200dpi) 6 mm/s (Max Quality 1200 x 1200dpi) |
85.1 mm/s (Max Speed 300 x 600dpi) 50.4 mm/s (Speed 600 x 600dpi) 35.9 mm/s (Normal 600 x 1200dpi) 13.2 mm/s (Quality 600 x 1200dpi) 6 mm/s (Max Quality 1200 x 1200dpi) |
| Paper Roll Diameter | 203.2 mm / 8" | 203.2 mm / 8" | 152.4 mm / 6" | 152.4 mm / 6" |
| Paper Width | 25.4 to 112 mm | 25.4 to 112 mm | 25.4 to 215.9 mm | 25.4 to 215.9 mm |
| Print Width | Up to 108 mm | Up to 108 mm | Up to 211.9 mm | Up to 211.9 mm |
| Peeler / Autocutter | Auto-cutter | Peeler | Auto-cutter | Peeler |
