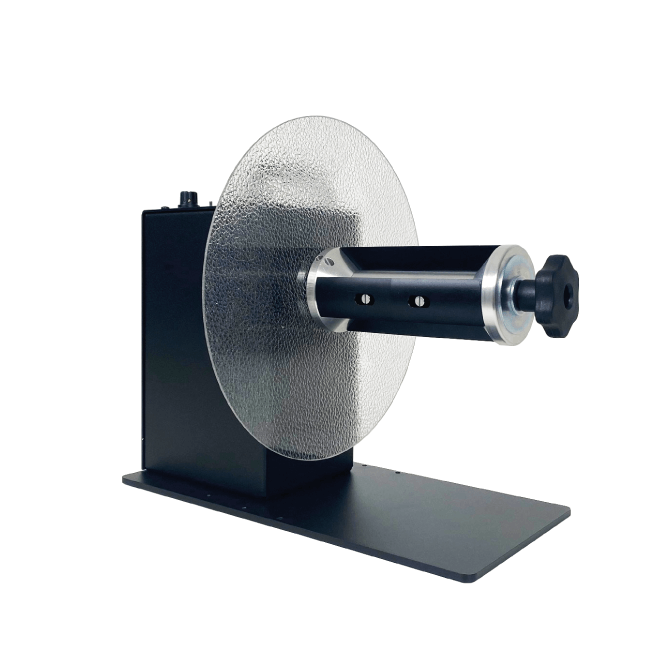

Labelmate CAT-3-CHUCK Label Rewinder
The CAT-3-CHUCK can accommodate labels with widths of up to 170mm, 220mm, or 270mm, and it's capable of winding label rolls with a diameter of up to 300mm. This model comes equipped with the robust "Quick-Chuck" core chuck, which allows for swift and effortless core and label roll loading and unloading.
For the specific dimensions of the Standard Quick-Chuck:
- Core diameter: 76mm
- Label width: 170mm
For additional Quick-Chuck sizes, please click here.
You have complete control over torque and direction via the Control Panel. The dual torque settings offer ample power, making it suitable for use with a LABELMATE Slitter.
Constructed from rugged, heavy-gauge steel, your CAT-3 Rewinder can be effortlessly positioned. Its special anti-slip feet prevent any unwanted movement.
Reliable, high-quality, and maintenance-free, the Heavy-Duty CAT Label Rewinder boasts an industry-leading 5-YEAR PARTS and LABOUR LIMITED WARRANTY (1-Year for power supplies).
Key features include:
- Handling labels with widths of 170mm, 220mm, or 270mm
- Roll diameter capacity of up to 300mm
- Compatible with 38, 40, 44, 70, 76, and 100mm cores
- Speed capabilities of up to 125cm/sec.
