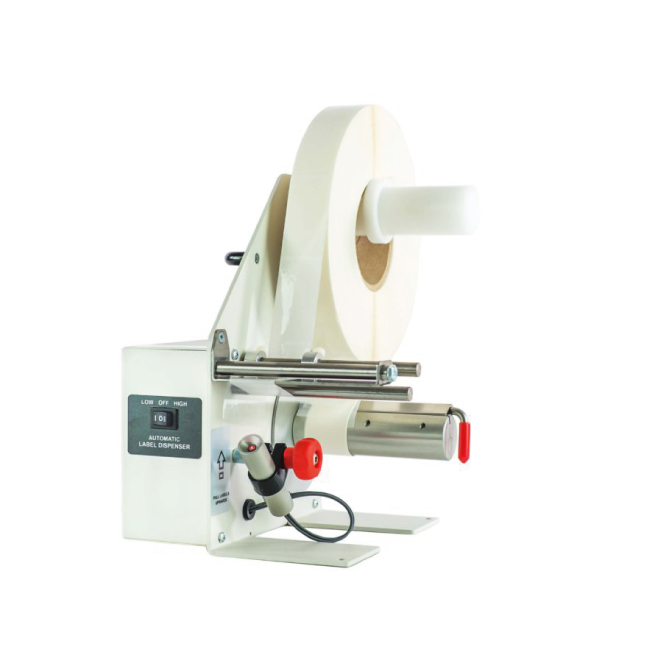

LD-100-U Label Dispenser
The LD-100-U utilises a peel-and-present design, employing the latest photoelectric technology to dispense all types of labels.
A dedicated reflective sensor is positioned beneath the label, offering consistent detection of the label's leading edge. As the operator retrieves one label, the next one is automatically and instantly advanced.
The label dispenser is equipped with 38mm core holders that accommodate all cores ranging from 40mm to 76mm in size. The external roll diameter is 220mm.
The setup process is remarkably straightforward. In under 30 seconds, you can make a single, easy adjustment for label length.
Designed for daily, continuous use, the LD-100-U is supported by LABELMATE's renowned 3-YEAR PARTS and LABOUR LIMITED WARRANTY (1-Year for power supplies), ensuring you enjoy trouble-free performance.
- Handles labels up to 115mm in width
- Roll diameter capacity of 220mm
- Label length ranging from 10mm to 150mm for regular labels
- Label length ranging from 20mm to 150mm for transparent labels
- Minimum speed of 11cm/sec"
