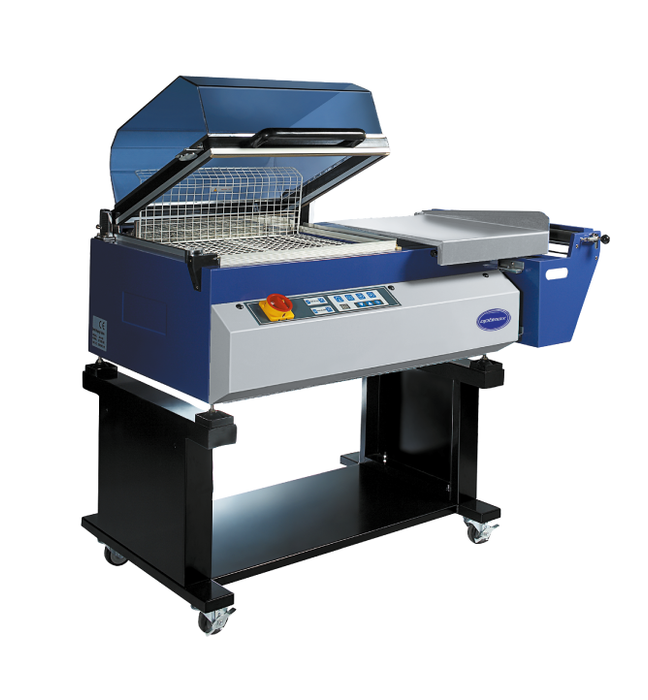

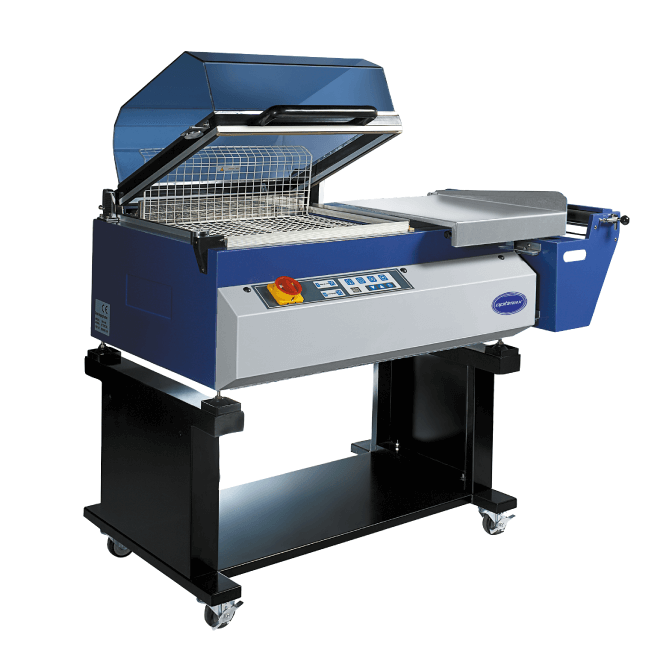

Optimax® SC455 Heat Shrink Chamber

Optimax® SC455 Heat Shrink Chamber



The Optimax SC455 is a manually operated shrink wrapping machine, combining the sealing bar unit with a fully enclosed chamber in which hot air is circulated to seal the film and evenly shrink it around a product.

Suitable for use with single products or for collation of several products in one pack.

Features include:

  • Medium-duty output model
  • Seal and shrink in one operation
  • Very low energy consumption
  • Advanced electronic controls
  • 240V single phase - requires a minimum 16A power supply. This model will not operate from a 13A socket
  • Requires 16A supply and connector (not included)
Power supply: 220/230/240V, 50/60Hz, 16A
Max. power consumption: 3.77kW
Effective power consumption: 1.6-2.3kW
Sealing dimensions: 420mm x 550mm (D x L)
Max. height of packaging: 250mm
Machine dimensions: 1320 x 820 x 645m (L x W x H)
Film Specifications:
Thickness: 60 gauge
Max. roll width 600mm
Max. outer roll diameter: 250mm
Inside core diameter: 75mm
