SATO FX3 Series

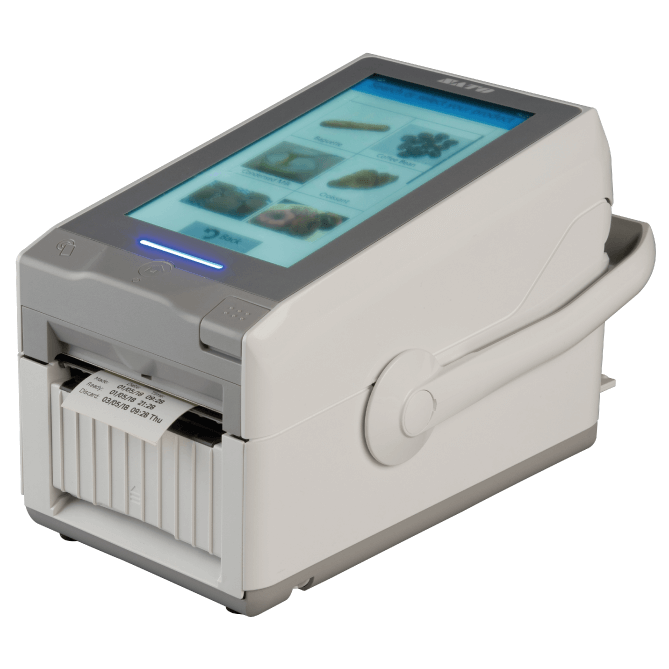

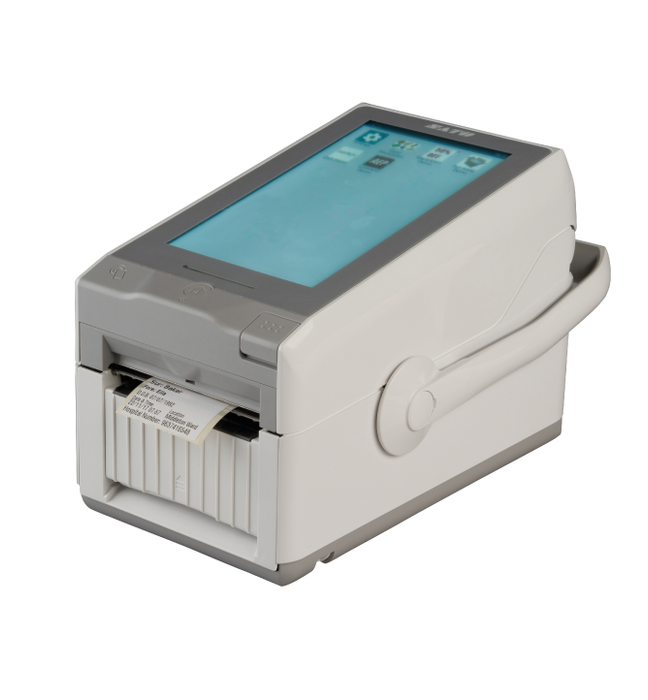

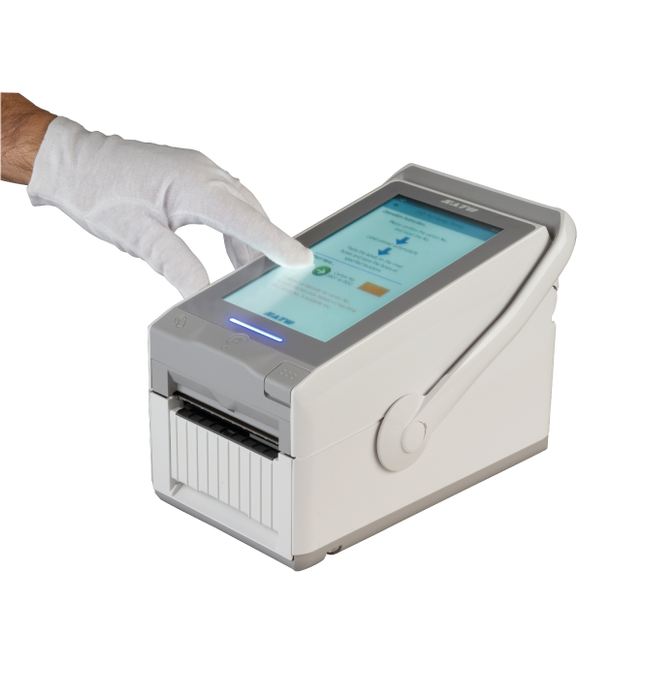

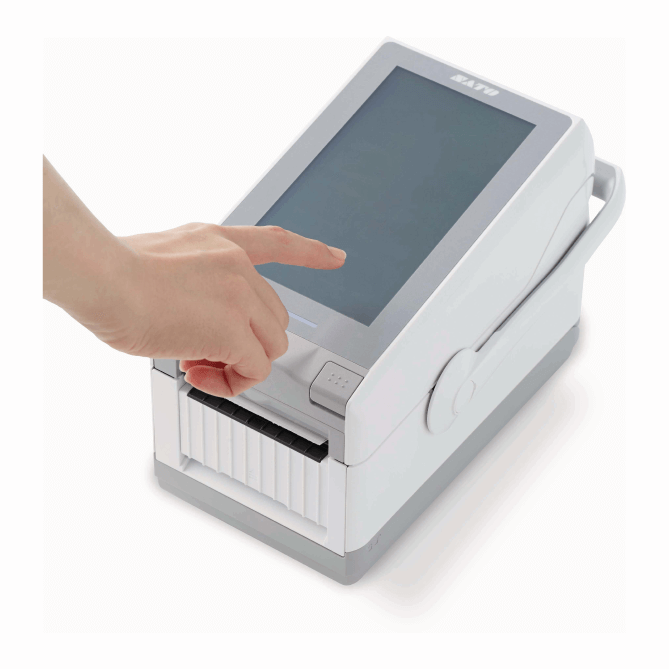

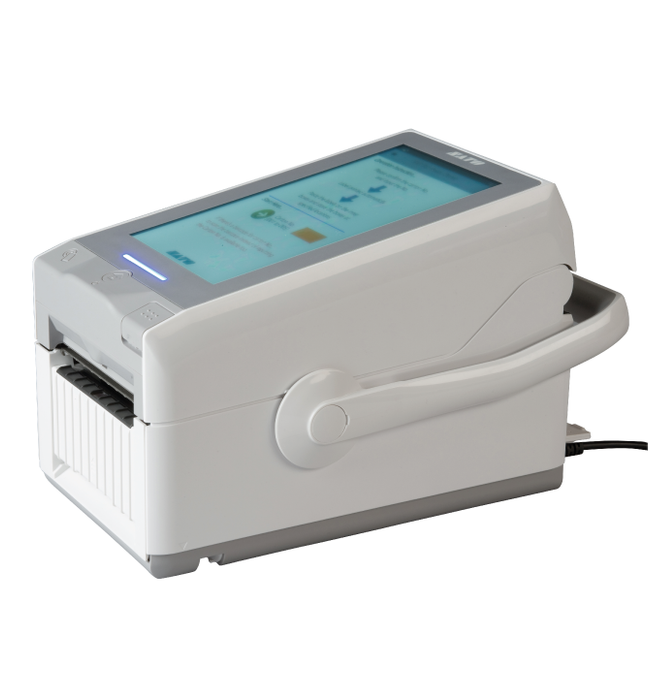

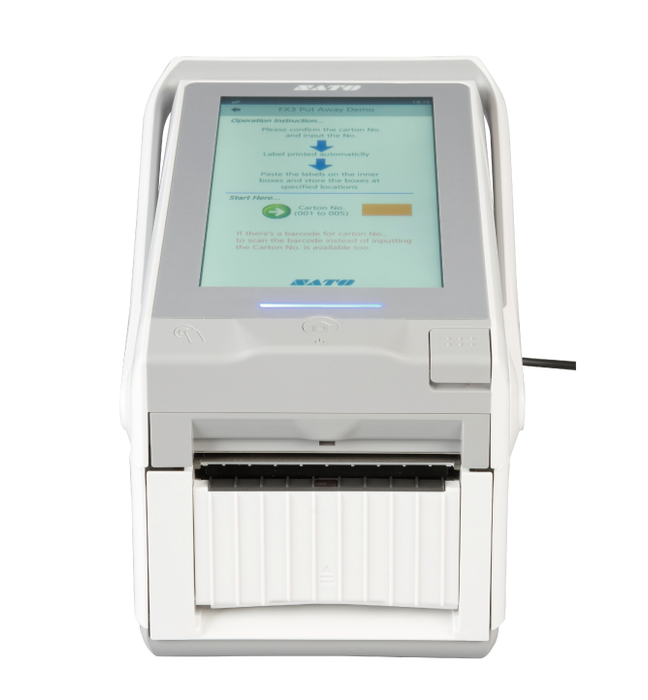

SATOThe award-winning SATO FX3-LX is a flexible, next-generation label printer that is suited to a wide range of industries due to its highly-customisable application technology and ability to adapt to its environment. The device’s intuitive printing applications are easily accessed via a 7-inch TFT full colour touch screen, which offers users the familiar feel of using a smartphone or tablet.

The FX3-LX’s Application Enabled Printing (AEP) platform allows the device to be used as a PC-less, online or standalone printer, giving users full autonomy when printing labels for sectors including Food, Retail and Manufacturing and Logistics. The device is compatible with SATO Online Services (SOS) a cloud-based proactive maintenance solution that provides prompt support and eliminates unnecessary operational downtime, whatever the application.

Key Benifits:

  • Improved efficiency, productivity and reduced costs
  • Optimised applications (via SATO and SATO partners) for your unique business needs
  • Reduced desk space demands. Wall-mounted option available. Portability for hand-held or trolley use
  • Caters for multi-lingual clients and workforces with 47 printable languages and 31 user display languages
  • Compatible with eco-friendly linerless labels
  • Branded and application-focused label designs from SATO’s own design team and brand-new production facilities
  • Supports compliance with food regulations
  • Multi-purpose asset: label printer, operator video training tool, compliance monitoring and management tool
  • SATO Online Services (SOS) remote, proactive maintenance solution for prompt support, wear part notification and reporting
  • Easy database update by USB/LAN/WLAN

SATO FX3 Brochure

SATO FX3 Datasheet

Technology Direct Thermal
Resolution 12 dot/mm (305dpi)
Max. print speed

AC adapter operation: 152mm/sec

Battery operation: 101mm/sec

Max. print area Width: 80mm (3.15"), Length: 500mm (19.69")

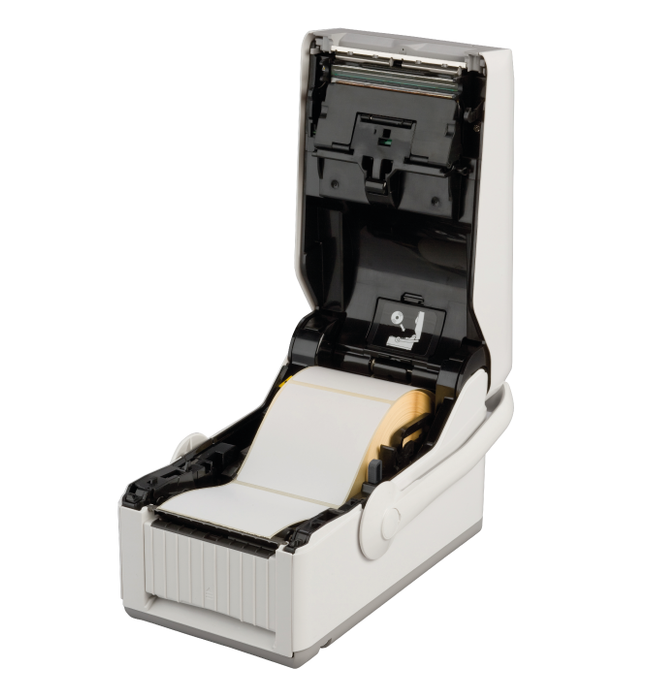

Max. roll size 105 mm (4.13”) on 25 mm (1”) ID Core
90 mm (3.54”) on 40 mm (1.5”) ID Core
Standard interfaces USB 2.0 (Type A) x 3, USB 2.0 (Type B), Ethernet (IPv4/v6), NFC
Optional interfaces Wifi: Wifi Direct IEEE802.11 a/b/g/n/ac, Dual Band, (2.4GHz/ 5GHz), Bluetooth: version 4.1, MFi certified
Dimensions Standard model: W132 mm x D 225mm x H161mm
*Excluding label roll, AC adapter and other options

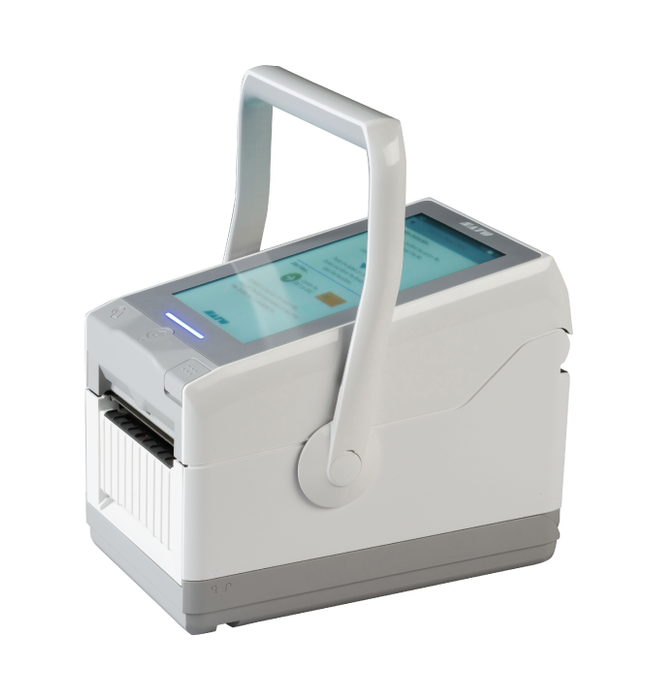

Dimensions Standard model with battery mount kit: W132 mm x D 225mm x H180mm
Weight (approx.)

Standard model: 2.5kg

Standard model with battery mount kit: 3kg
