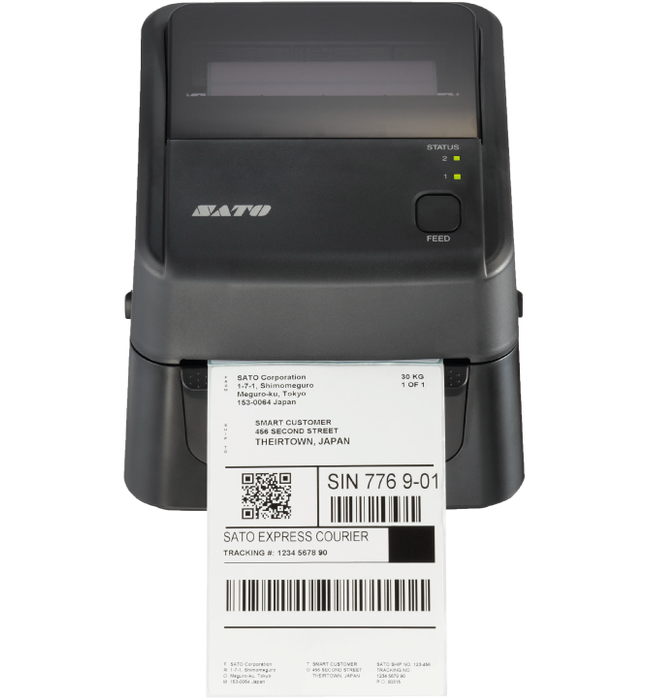

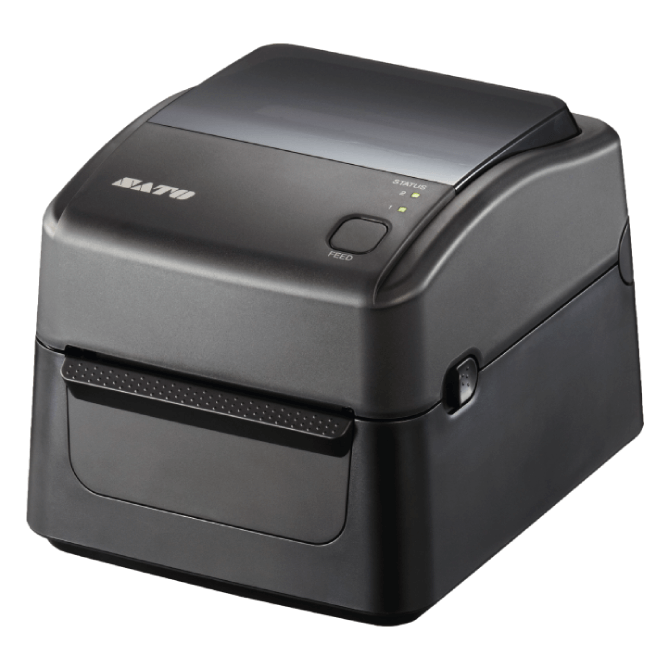

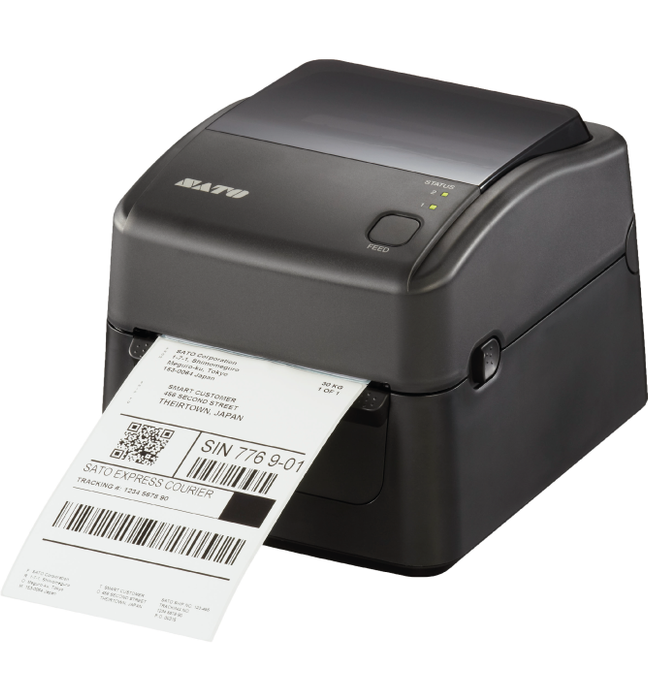

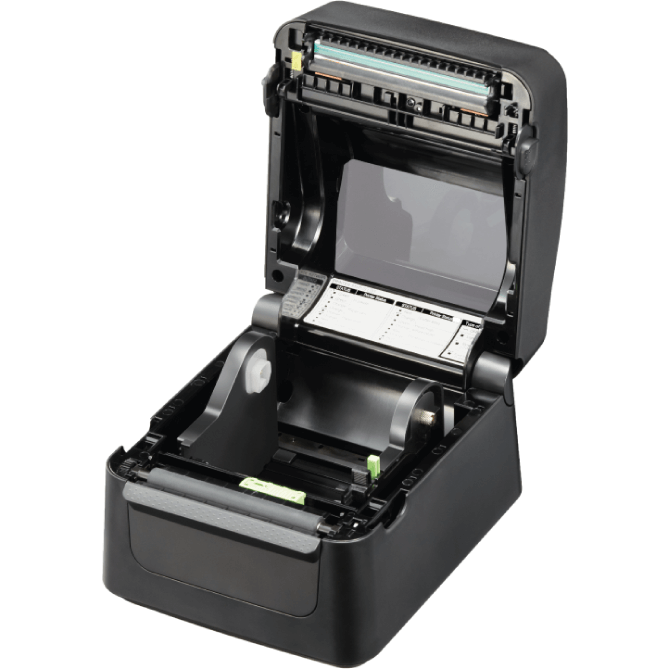

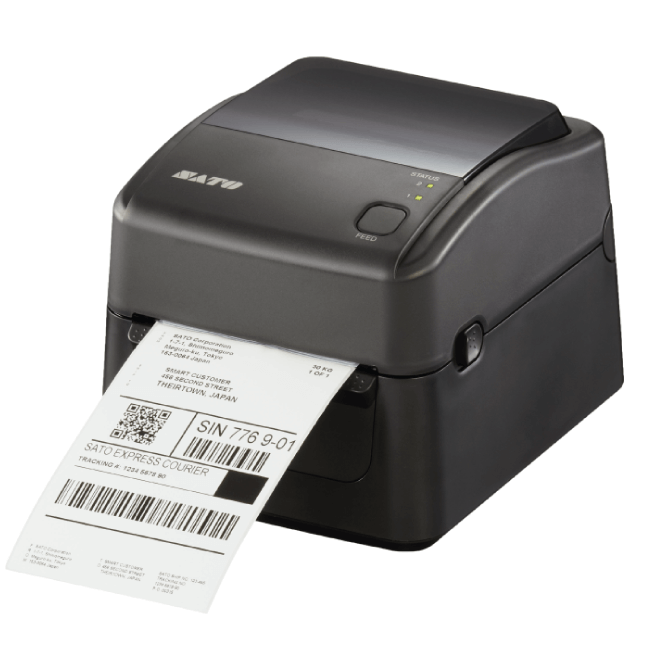

SATO WS4 DT Series

The WS4 has an attractive and stylish appearance for any visible application. The printer has the expected SATO robustness, a high media capacity for industrial environments and excellent print quality. Performance is delivered at a competitive price.

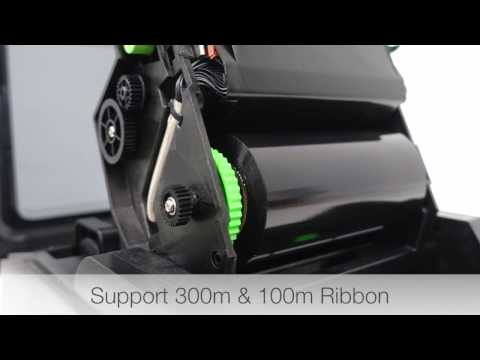

Designed with needs of the logistics, healthcare, retail and manufacturing workplace in mind, the printer has a very flexible media capability and ensures low cost of ownership using the large capacity 300 metre length ribbons.
Ideal for mid-volume applications where reliability and adaptability are key considerations, the new printer options include a dispenser, cutter and large media roll unwinder. The WS4 is equipped with emulations of widely-used printer languages and a selection of wired and wireless interface options for comprehensive connectivity.
Technology
|
Direct thermal
|
Resolution
|
8 dots/mm (203 dpi) & 12 dots/mm (300 dpi)
|
Max. print speed
|
152.4mm/sec (6 ips) 203 dpi / 102mm/sec (4 ips) 300 dpi
|
Max. print width | 104mm (4.09”) |

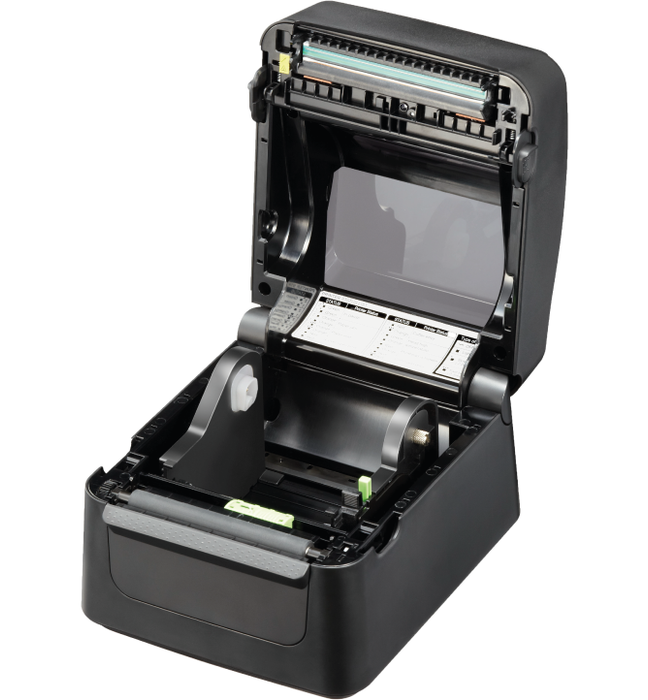

Max. media & liner width
|
115mm
|
Min. media & liner width
|
22.4mm
|
Max. roll size
|
127mm (5”), Core diameter: 25.4mm / 38mm (1” / 1.5”)
|

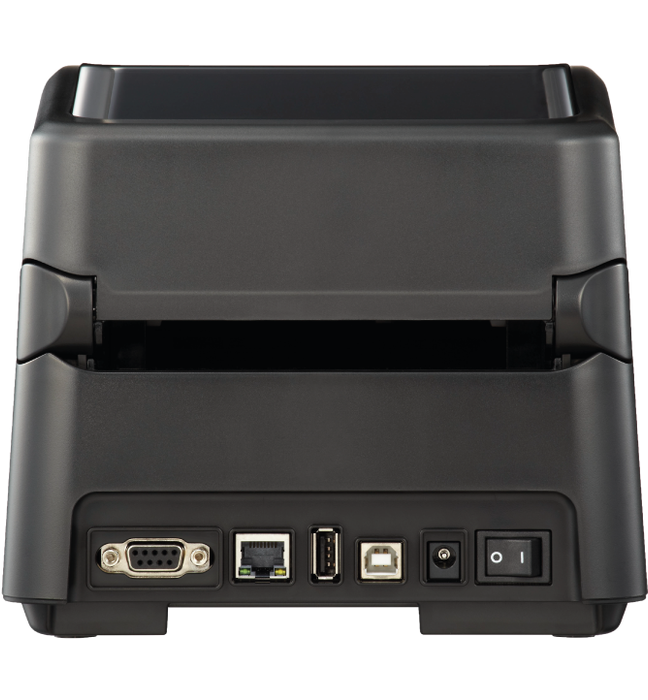

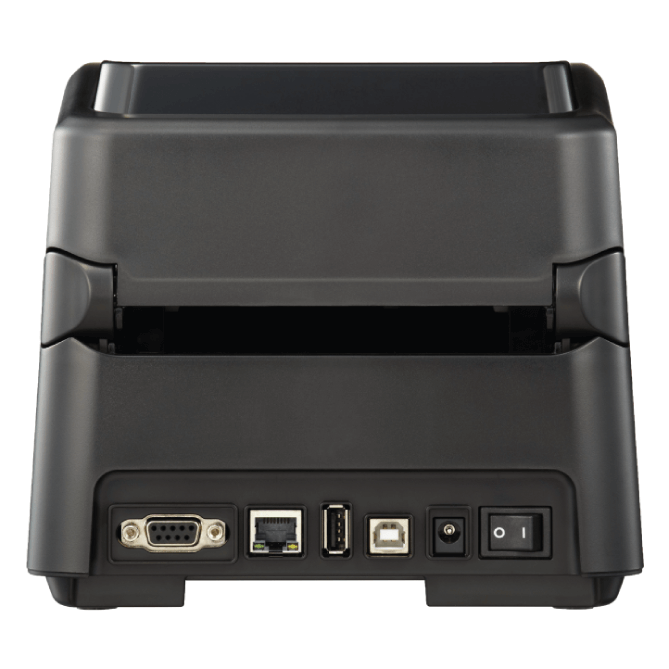

Standard interfaces
|
LAN model: USB + LAN, Standard Model: USB + RS232C + LAN
|
Optional interfaces
|
Wireless LAN b/g/n and Bluetooth |
Dimensions (WxDxH)
|
183.8mm x 225.9mm x 166mm
|
Weight (approx.)
|
1.74 kg
|
Warranty
|
12 Months Return to Base
|
