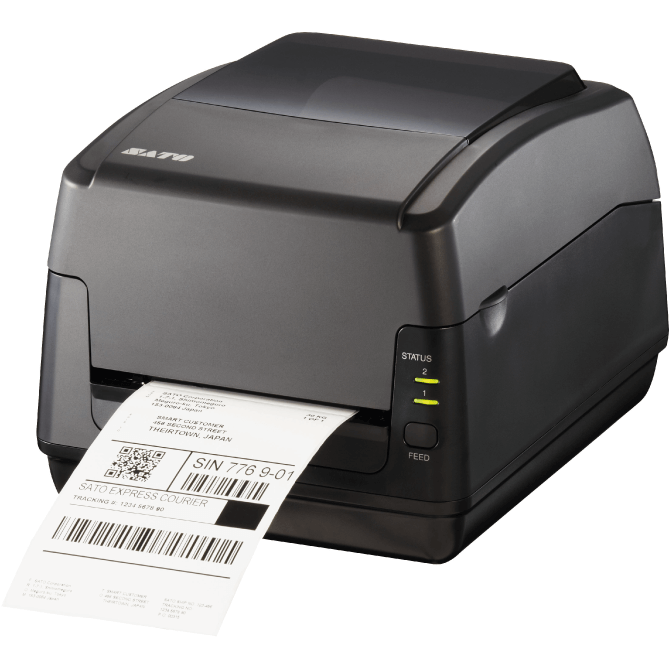

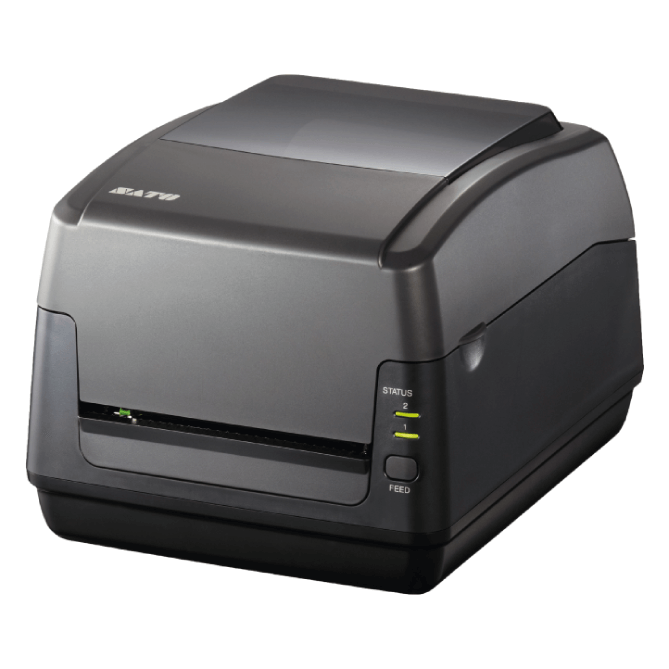

SATO WS4 TT Series

SATOThe WS4 has an attractive and stylish appearance for any visible application. The printer has the expected SATO robustness, a high media capacity for industrial environments and excellent print quality. Performance is delivered at a competitive price.

Designed with needs of the logistics, healthcare, retail and manufacturing workplace in mind, the printer has a very flexible media capability and ensures low cost of ownership using the large capacity 300 metre length ribbons.

Ideal for mid-volume applications where reliability and adaptability are key considerations, the new printer options include  a dispenser, cutter and large media roll unwinder. The WS4 is equipped with emulations of widely-used printer languages and a selection of wired and wireless interface options for comprehensive connectivity.

        SATO WS4 Datasheet


        Direct thermal / Thermal transfer
        8 dots/mm (203 dpi) & 12 dots/mm (300 dpi)
        Max. print speed
        152.4mm/sec (6 ips) 203 dpi / 102mm/sec (4 ips) 300 dpi
        Max. print width 104mm (4.09”)
        Max. media & liner width
        Min. media & liner width
        Max. roll size
        127mm (5”), Core diameter: 25.4mm / 38mm (1” / 1.5”)

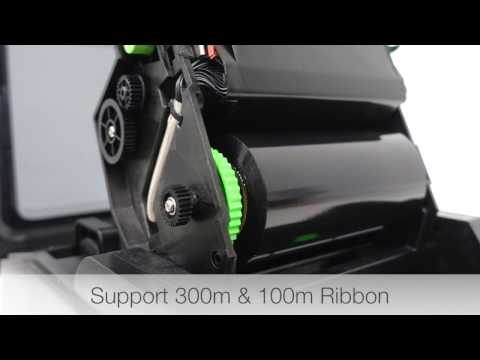

        Ribbon length Max. 300 metres. Centre justified
        Ribbon width 40mm - 110mm
        Standard interfaces
        LAN model: USB + LAN, Standard Model: USB + RS232C + LAN
        Optional interfaces
        Wireless LAN b/g/n and Bluetooth
        Dimensions (WxDxH)
        183.8mm x 225.9mm x 166mm
        Weight (approx.)
        1.74 kg
        12 Months Return to Base
