STS 810 Flat Surface Label Applicator

Original price £2,500.00 - Original price £2,500.00
Original price
£2,500.00
£2,500.00 - £2,500.00
Current price £2,500.00

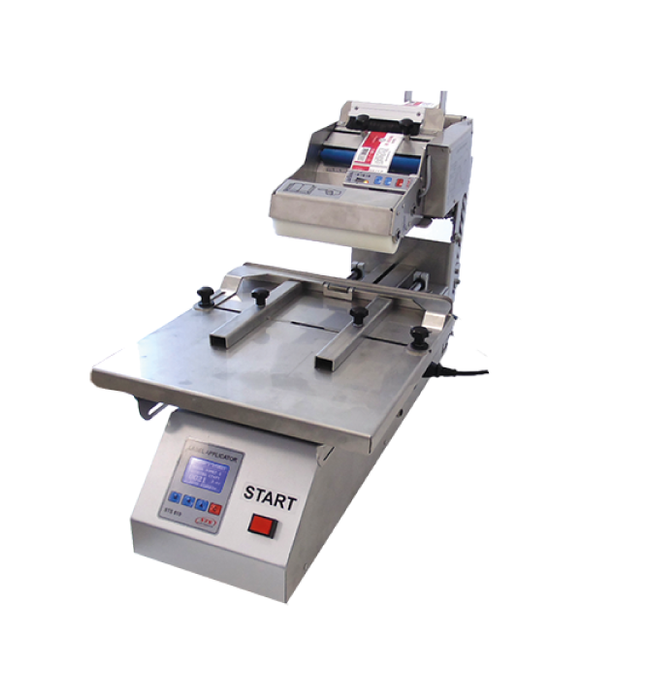

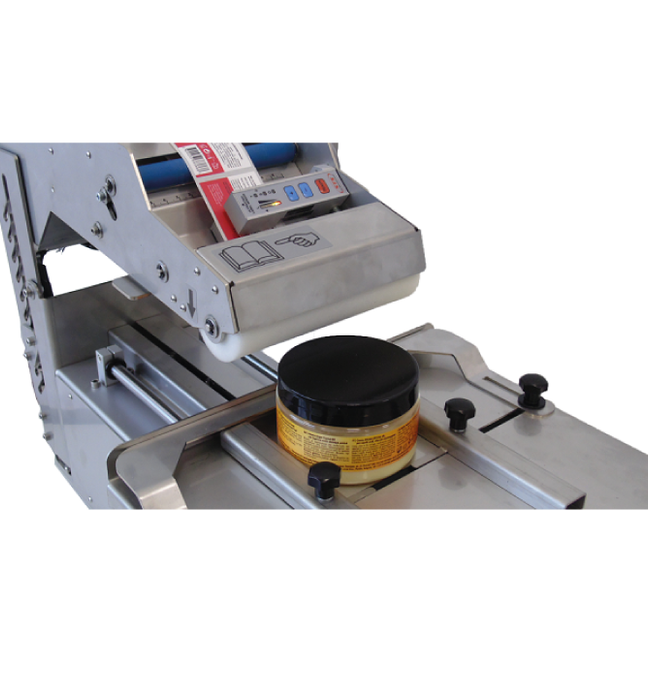

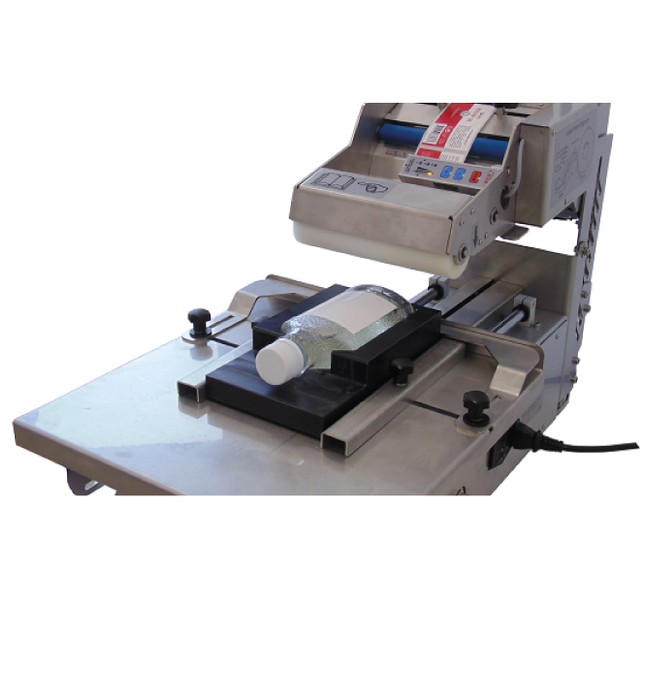

STD 810 is a semi-automatic label applicator purpose build for applying labels on flat surface containers. The containers are placed on the applicator moving platform, the press start and the rest is automation! Fast, easy and convenient! Thanks to the build in sensor you can apply labels on various materials like – paper, metal, polypropylene, etc.

Features:

  • Flexible use
  • Perfect integration
  • High-precision labelling
  • It works with virtually all types of labels, including transparent ones
Container height 25 –  500 mm
Roll diameter Up to 200 mm
Spool diameter 40 mm – 76 mm
Label width 25 mm – 105 mm
Label length 35 mm – 2100 mm
Distance between labels Greater than 2.5 mm
Platform speed 0.1 m / sec.
Power supply 220 V AC, 50 Hz
Dimensions 400 mm x 300 mm x 680 mm
