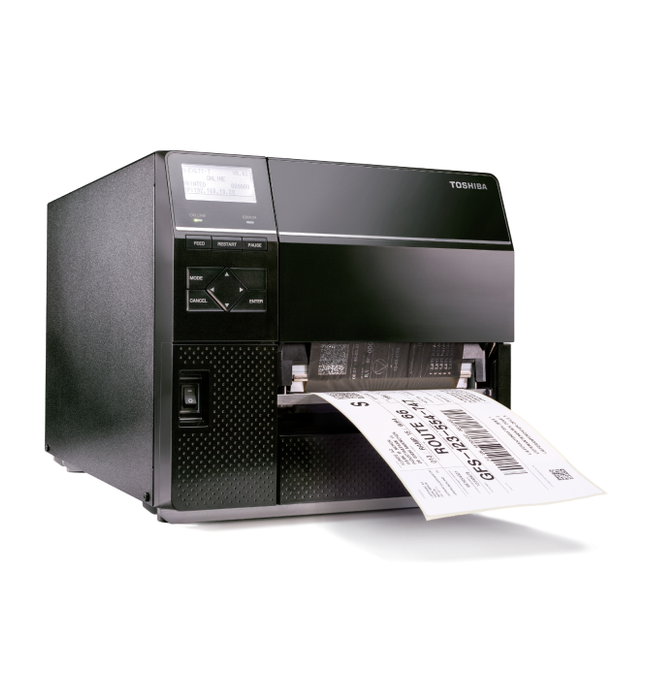

Toshiba TEC B-EX6T1 - Near Edge

Extending the Superb Performance and Value of the B-EX Range to Wide Format Printing
The B-EX6T1, a 6-inch industrial printer series, has been meticulously crafted to deliver outstanding performance and functionality, perfectly catering to the demands of the wide-web printing marketplace. It is equipped with a wide range of features and options aimed at providing the most cost-effective solution, including an extended long-life print head, Toshiba's exclusive ribbon save mode, and the capacity for up to an 800-meter ribbon length. Combined with its super high print speeds, these features work in harmony to enhance efficiencies and, in turn, reduce costs over the printer's operational lifespan.
This printer boasts high speed and high throughput, empowered by advanced processing capabilities. Its build is rugged, robust, and exceptionally durable, ensuring long-lasting performance with easy operation. Furthermore, it comes equipped with USB and Ethernet connectivity as standard features.
To learn more about Toshiba's exceptional industrial labelling solutions, delve into the world of innovation and efficiency today.
B-EX6T1-GS/TS12
|
|
Printhead |
Near-edge head
|
Dimensions |
331 (W) x 480 (D) x 310 (H) mm
|
Weight | 20 kg |

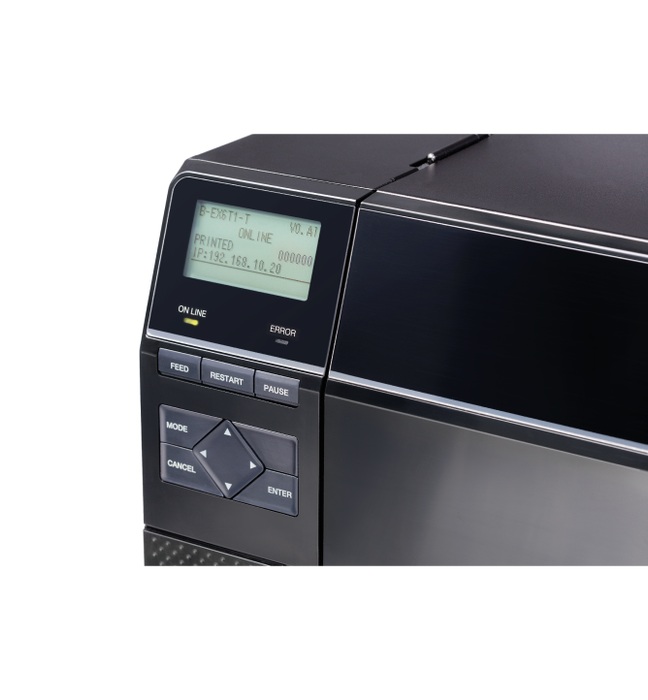

User interface | Graphic LCD, 2 x LED, 10 x key |
Operating Temperature
|
5 - 40°C (41 - 104°F) / 25 - 85% non-condensing relative humidity (RH)
|
Standard Interface | USB 2.0, LAN 10/100 Base, IPv6, USB Host/RTC, |
Optional Interface |
RS232, Centronics, Wireless LAN, EX I/O
|
Memory | System (Flash Memory) 64MB, SRAM 32MB |
Power Supply |
AC 100 to 240V, 50/60 Hz
|
Method |
Direct thermal / Thermal transfer
|
Resolution |
203/305 dpi ( 8/12 dots/mm)
|
Max. Print Width | 160mm |
Max. Print Length | 1490mm |
Max. Print Speed | 305 mm/second (12 ips) |
Ribbon Save | Yes |
Type of ribbon | Edge head type |
Max. Ribbon Width | 170mm |
Max. Ribbon Length | 800 m (Up to 5 inch width) |
Paper Alignment | Center |
Backing Paper Width | 50-165 mm |
Label Thickness | 0.13-0.17 mm |
Tag Thickness | 0.08-0.25mm |
Paper Roll | 200 mm (7.9") |
Options | Disc cutter, Peel-off module, Fan fold guide, RS232, Centronics, Wireless LAN, EX I/O, RFID Kit* |
(*) For T1 model only
Availability: Up to 7 working days
