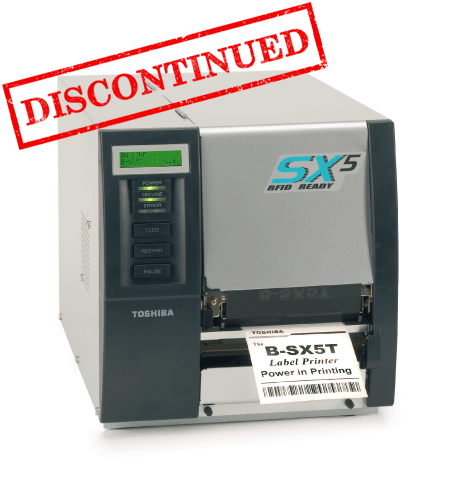

Toshiba TEC B-SX5T

High end, high quality industrial printer

The Toshiba TEC SX5 provides superb reliability and performance. Constructed from heavy-duty steel, the TEC SX5 is ideally suited to any high-demand application.

Toshiba TEC has retained all the proven features of the popular B-572 printer, while providing the latest technical innovations in functionality and performance. With the touch of a button, the B-SX5 will be turning out labels almost instantly at speeds up to 203mm/second, thanks to the continuing advances in processor capacity.

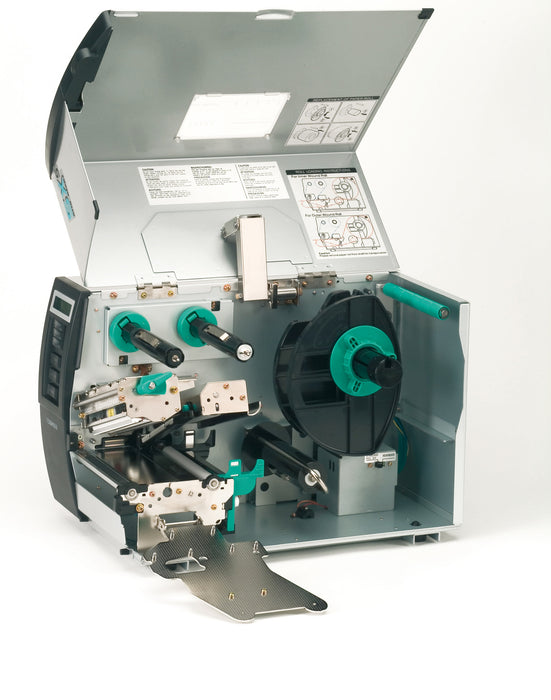

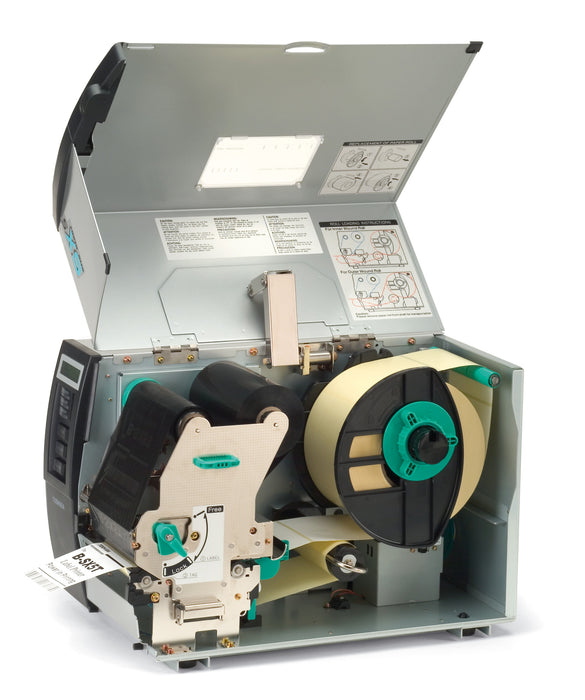

Toshiba TEC's innovations in ribbon-motor control also produce real on-the-fly ribbon save without affecting the print throughput. Access to printhead, platen, paper path and sensors is now easier with the development of a new wide opening mechanism, making paper loading and cleaning very easy. Using the very latest technology, the B-SX5 produces excellent clarity print at 305 dpi.

  • Resolution: 12 dots/mm (306 dpi)
  • Printing width: max. 127.5mm
  • Printing speed: up to 203mm/s (8 ips)
  • RFID-ready


Thermal transfer and direct thermal
12.5 dot/mm (306 dpi)
Max. print speed
Max. print width
Max. media width
Min. media width 30mm
Max. roll size
Standard interfaces
Serial, parallel
Optional interfaces
USB, Internal LAN 10/100, wireless LAN 802.11
Dimensions (WxDxH)
291mm x 460mm x 308mm
Weight (approx.)
Three months on-site and 21 months Return to Base (RTB)
Printhead: six months or 50km

Availability: Usually up to 7 working days

Download Specifications
