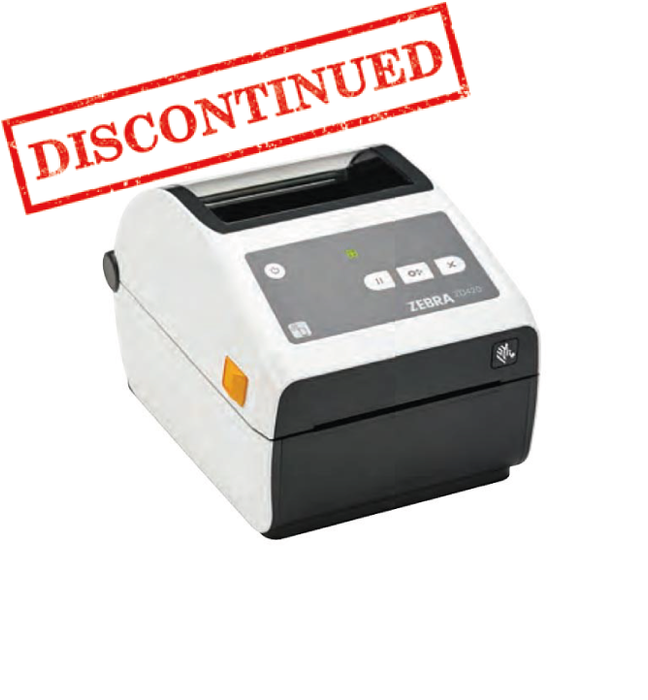

Zebra ZD420-HC Healthcare Direct Thermal Series

Would you like to upgrade your printers, but think it’s going to be too costly?

Then maybe it’s time you thought again!

We have great discounts available when you trade-up to a brand new Zebra printer.

TRADE-IN… any older thermal printer, from any manufacturer

TRADE-UP… to a brand-new Zebra industrial, desktop, mobile or card printer

Contact us at with the make, model & serial number of the printer you wish to trade-in and we'll provide a discount voucher to use against your purchase.

ZebraIn the critical healthcare environment, reliability and accuracy are paramount. Zebra’s ZD420-HC printers deliver features and functionality that take deployment and management simplicity, ease-of-use, application flexibility and total cost of ownership (TCO) to a new level in this printer class. Designed for healthcare, this printer is ready for the constant disinfecting and offers a healthcare compliant power supply. Available in both direct thermal and thermal transfer models, the ZD420-HC offers Zebra’s easy to use clamshell design combined with an intuitive interface. With optional 300 dpi printing, even the tiniest labels are crisp and legible. ZD420-HC printers run Link-OS® and are supported by our powerful Print DNA suite of applications, utilities and developer tools that deliver a superior printing experience through better performance, simplified remote manageability and easier integration. The ZD420-HC — when ease of use, flexibility and management simplicity matter.

The ZD420-HC is ideal for many healthcare applications, including:

  • Prescriptions
  • Lab and specimen labels
  • Patient ID wristbands
  • Asset labels
  • Blood and IV bag labels
  • Patient record labels


Direct thermal
8 dots/mm (203 dpi)
Max. print speed
6 in./152 mm per second (203 dpi)
Max. print width 4.09 in./104 mm for 203 dpi
Max. media & liner width
4.65 in./118 mm
Min. media & liner width
0.585 in./15 mm
Media Sensors Full width, moveable reflective/black mark sensor; multi-position transmissive/ gap sensor
Max. roll size
5.00 in./127 mm
Standard interfaces
USB v2.0
Optional interfaces
Bluetooth Low Energy (Standard on network connected models)
RS-232 Serial (Option)
10/100 Ethernet (Option)
Wireless: 802.11ac with Bluetooth 4.1 (Factory installed option)
Dimensions (WxDxH)
171mm x 221mm x 151mm
Weight (approx.)
12 Months Return to Base
