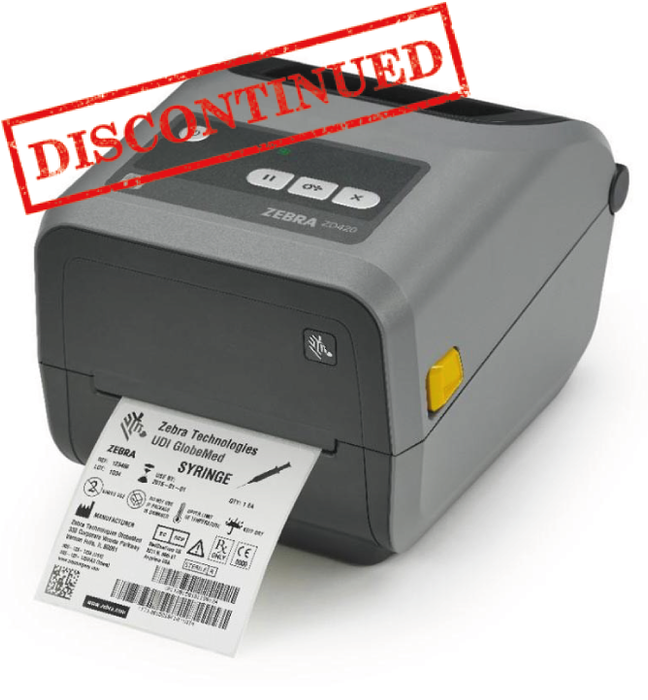

Zebra ZD420 Thermal Transfer Series
If you need a fast 4-inch printer that is easy to use, easy to deploy and easy to manage, choose the leader of the class — the ZD420. The ZD420 offers fast high quality printing, an intuitive interface, virtually every modern wired and wireless connectivity option, field-installable connectivity and media handling options, along with the ability to easily manage and monitor printers from the cloud. The ZD420 – when ease of use, application flexibility and management simplicity matter.
The ZD420 is ideal in:
Light Manufacturing: • Agency labels/ nameplates • Product labels • Apparel tags • Work-in-Process (WIP) • Inventory labels • Agency labels • Shipping labels
Transportation & Logistics: • Asset labels • Shipping labels • Receiving labels • Packing slips
Healthcare: • Prescriptions • Lab and specimen labels • Patient ID wristbands • Asset labels • Blood and IV bag labels • Patient record labels
Retail: • Return tags • Asset labels • Shelf labels • Price markdowns • Information labels
Government: • Asset labels • Record labels
Services: • Service reminder labels • Ticketing • Purchase transactions
|
Technology
|
Thermal Transfer
|
|
Resolution
|
203 dpi/8 dots per mm Optional 300 dpi/12 dots per mm
Resolution can be factory installed or changed on site via accessory kits.
|
|
Max. print speed
|
6 in./152 mm per second (203 dpi)
4 in./102 mm per second (300 dpi)
|
| Max. print width |
4.09 in./104 mm for 203 dpi 4.27 in./108 mm for 300 dpi |
|
Max. media & liner width
|
4.65 in./118 mm
|
|
Min. media & liner width
|
0.585 in./15 mm
|
| Media Sensors | Full width, moveable reflective/black mark sensor; multi-position transmissive/ gap sensor |
|
Max. roll size
|
5.00 in./127 mm
|
|
Standard interfaces
|
USB v2.0
|
|
Optional interfaces
|
Bluetooth Low Energy (Standard on network connected models) RS-232 Serial (Option) 10/100 Ethernet (Option) Wireless: 802.11ac with Bluetooth 4.1 (Factory installed option) |
|
Dimensions (WxDxH)
|
202mm x 267mm x 192mm
|
|
Weight (approx.)
|
2.4kg
|
|
Warranty
|
12 Months Return to Base
|
