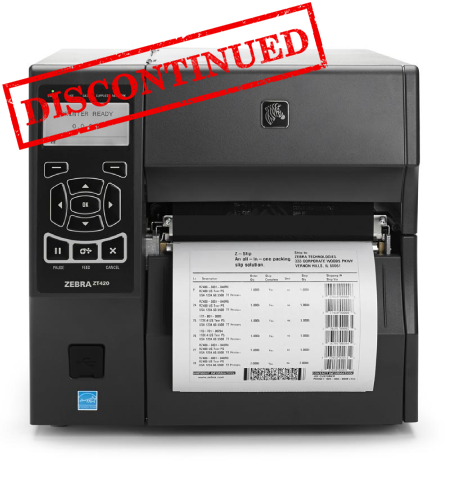

Zebra ZT420 Series



Fast and reliable, the Zebra ZT420 has a print width of 6 inches and can print up to 12 ips. The Zebra ZT420 has a metal frame and bi-fold metal media cover with enlarged clear viewing window.

Keep your customers' mission-critical operations running efficiently with the ZT400 Series printers. Constructed with an all-metal frame and bi-fold door, ZT400 Series printers deliver advancements in print speed, registration and connectivity as well as additional advanced features.

ZT400 printers feature USB, Serial, Ethernet and Bluetooth® connectivity along with expanded RFID capabilities. Plus, with Zebra's Link-OS® environment, an innovative operating system, your customer can easily integrate, manage and maintain these printers from anywhere in the world.

The primary markets for the ZT400 Series Industrial Printers are:

  • Manufacturing
  • Transportation & Logistics
  • Retail
  • Healthcare

Key applications include:

  • Asset Management
  • Cross Docking
  • Inventory Management
  • Lab Sample Tracking
  • Receiving/Shipping
  • Reverse Logistics
  • Work-in-Process Tracking
  • Compliance Labeling
  • Information Labels
  • Medical Record Labeling
  • Order Labeling
  • Prescription Labeling
  • Quality Control

          ZT400 Series Datasheet

          Technology
          Direct thermal / Thermal Transfer
          Resolution
          8 dots/mm (203 dpi) & 12 dots/mm (300 dpi)
          Max. print speed
          12 ips/305 mm per second
          Max. print width 6.6"/168 mm
          Max. media & liner width
          7.0"/178 mm
          Min. media & liner width
          2.00"/51 mm
          Max. roll size
          8.0"/203 mm O.D. on a 3"/76 mm I.D. core
          Ribbon length 1476’/450 m
          Ribbon width 2.00"/51 mm to 6.85"/174 mm
          Ribbon core size 1.0"/25.4 mm
          Standard interfaces
          USB 2.0, high-speed, RS-232 Serial, 10/100 Ethernet, Bluetooth 2.1, USB Host
          Optional interfaces
          Parallel (Bi-directional interface), Wireless: ZebraNet® Printer Server – supports 802.11 a/b/g/n networks
          Dimensions (WxDxH)
          336.55mm x 495mm x 324mm
          Weight (approx.)
          18.14 kg
          Warranty
          12 Months Return to Base
