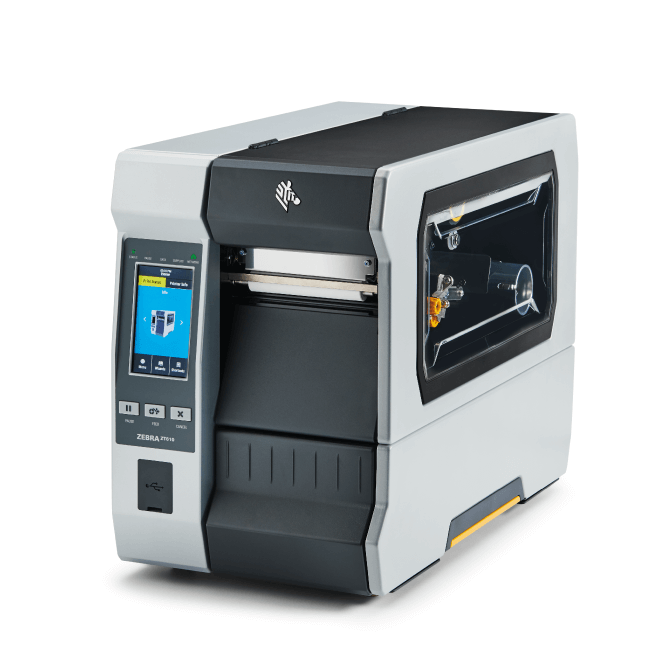

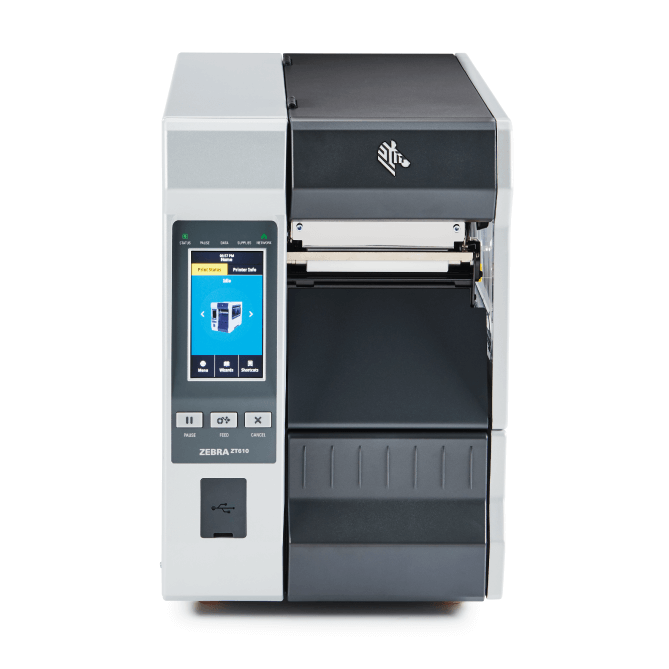

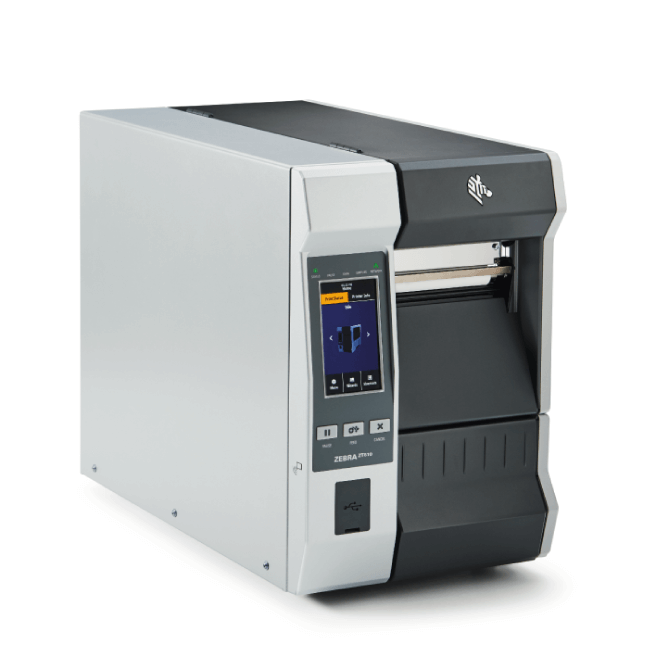

Zebra ZT610 Series
Zebra ZT600 Series Industrial Printers: The Next Generation Xi Series, Now with More Intelligence and Industrial Brawn
Designed to keep critical operations running smoothly, Zebra's high-performance industrial printing systems stand the test of time—both physically and technologically. The ZT610 series has been completely redesigned and replaces the Xi4 printers. This new duo of ZT610 and ZT620 printers features next-generation operational visibility, control and adaptability to meet evolving needs.

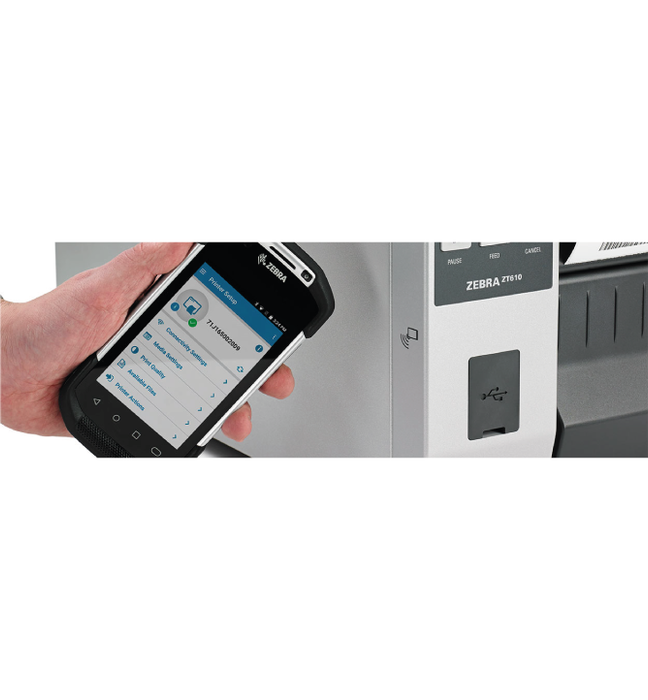

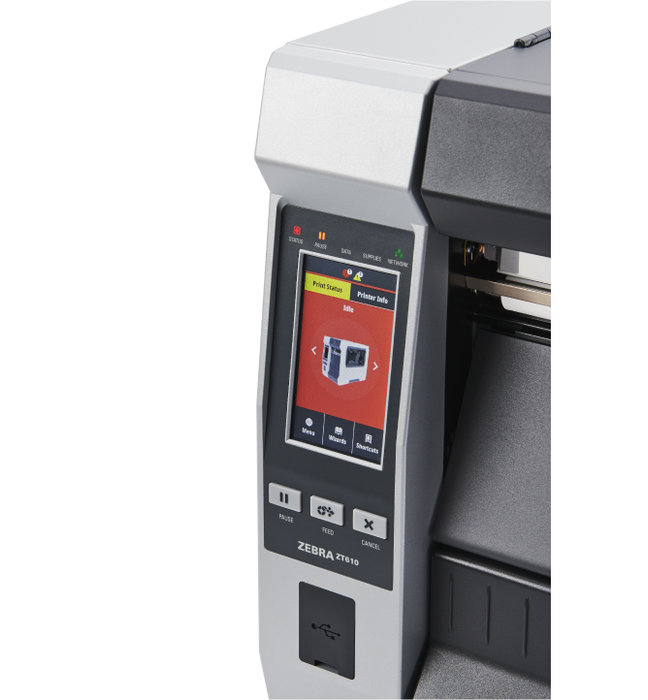

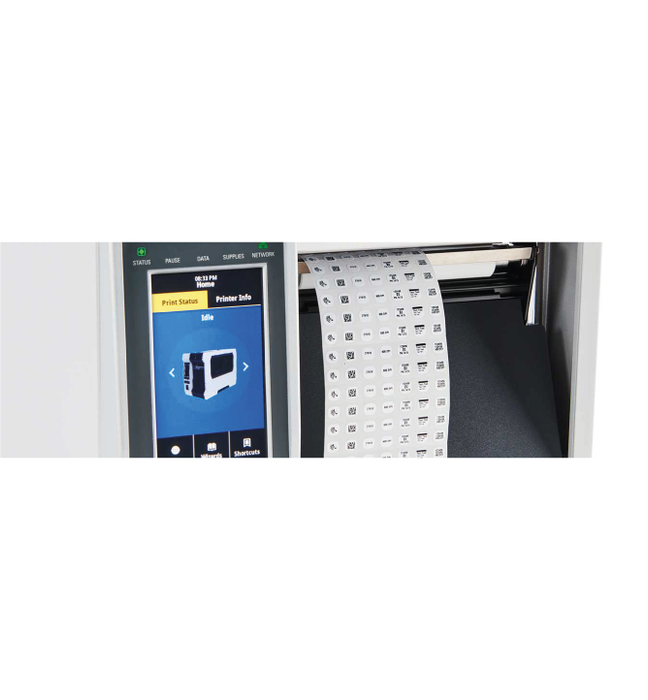

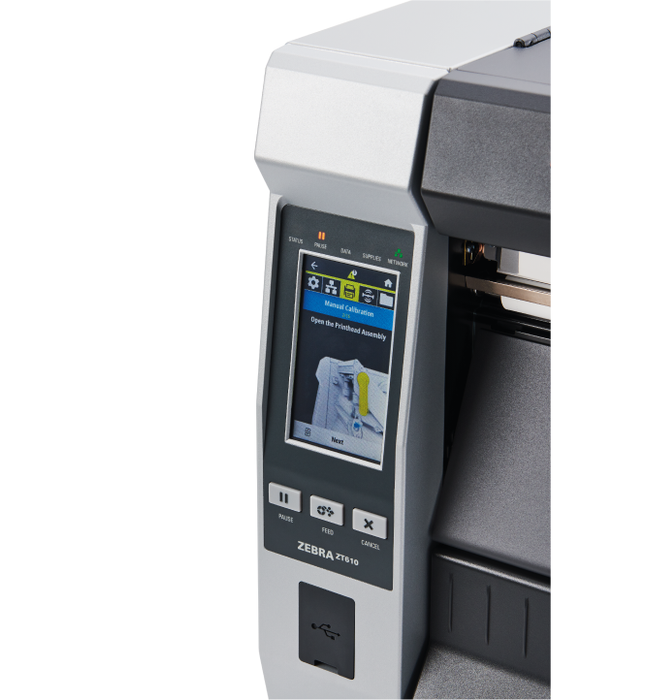

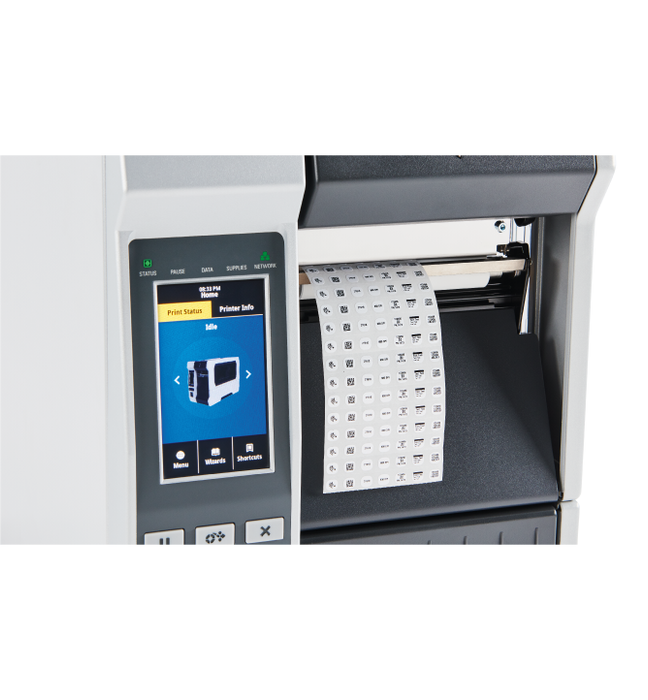

The ZT610 and ZT620 provide 24/7 reliability. The ZT610 also provides best-in-class high-resolution printing for small labels. An advanced, user-friendly design and Link-OS™ environment simplify everything from setup and management to troubleshooting. Users gain greater operational visibility with remote access and management, plus future-ready adaptability to meet business needs today, tomorrow and for years to come.
The ZT600 series target markets are manufacturing, warehousing, and transportation and logistics.
Key Applications:
- Work-in-Process Tracking
- Product ID / Serial Numbers
- Receiving / Put-Away Labeling
- Order Picking / Packing
- Cross Docking
- Compliance Labeling
- Back-of-Store Operations
|
Technology
|
Direct thermal / Thermal Transfer
|
|
Resolution
|
8 dots/mm (203 dpi), 12 dots/mm (300 dpi) & 24 dots/mm (600dpi)
|
|
Max. print speed
|
14 ips/356 mm per second |
| Max. print width | 4.09"/104 mm |
|
Max. media & liner width
|
4.5"/114 mm
|
|
Min. media & liner width
|
1.00"/25.4 mm
|
|
Max. roll size
|
8.0"/203 mm O.D. on a 3"/76 mm I.D. core
|
| Ribbon length | 1476’/450 m |
| Ribbon width | 2.00"/51 mm to 4.33"/110 mm |
| Ribbon core size | 1.0"/25.4 mm |
|
Standard interfaces
|
Serial, USB, Gigabit Ethernet, USB Host (2), Bluetooth 4.0
|
|
Optional interfaces
|
Parallel, Wireless 802.11a/c, Applicator Port, IPv6 |
|
Dimensions (WxDxH)
|
268.2mm x 505mm x 395.68mm
|
|
Weight (approx.)
|
22.7 kg
|
|
Warranty
|
12 Months Return to Base
|
